hugegraph-llm

README.md

HugeGraph-LLM Ask DeepWiki

Bridge the gap between Graph Databases and Large Language Models

🎯 Overview

HugeGraph-LLM is a comprehensive toolkit that combines the power of graph databases with large language models. It enables seamless integration between HugeGraph and LLMs for building intelligent applications.

Key Features

  • 🏗️ Knowledge Graph Construction - Build KGs automatically using LLMs + HugeGraph
  • 🗣️ Natural Language Querying - Operate graph databases using natural language (Gremlin/Cypher)
  • 🔍 Graph-Enhanced RAG - Leverage knowledge graphs to improve answer accuracy (GraphRAG & Graph Agent)

For detailed source code doc, visit our DeepWiki page. (Recommended)

📋 Prerequisites

Important

  • Python: 3.10+ (not tested on 3.12)
  • HugeGraph Server: 1.3+ (recommended: 1.5+)
  • UV Package Manager: 0.7+

Code Quality (ruff + pre-commit)

  • Ruff is used for linting and formatting:
    • ruff format .
    • ruff check .
  • Enable Git hooks via pre-commit:
    • pre-commit install (in the root dir)
    • pre-commit run --all-files
  • Config: ../.pre-commit-config.yaml

🚀 Quick Start

Choose your preferred deployment method:

Option 1: Docker Compose (Recommended)

The fastest way to get started with both HugeGraph Server and RAG Service:

# 1. Set up environment
cp docker/env.template docker/.env
# Edit docker/.env and set PROJECT_PATH to your actual project path
# See "config.md" for all available configuration options
# If there is not a configuration file (named .env) under hugegraph-llm, run the following command
cd hugegraph-llm && touch .env && cd ..

# 2. Deploy services
cd docker
docker-compose -f docker-compose-network.yml up -d

# 3. Verify deployment
docker-compose -f docker-compose-network.yml ps

# 4. Access services
# HugeGraph Server: http://localhost:8080
# RAG Service: http://localhost:8001

Option 2: Individual Docker Containers

For more control over individual components:

Available Images

  • hugegraph/rag - Development image with source code access
  • hugegraph/rag-bin - Production-optimized binary (compiled with Nuitka)
# 1. Create network
docker network create -d bridge hugegraph-net

# 2. Start HugeGraph Server
docker run -itd --name=server -p 8080:8080 --network hugegraph-net hugegraph/hugegraph

# 3. Start RAG Service
docker pull hugegraph/rag:latest
docker run -itd --name rag \
  -v /path/to/your/hugegraph-llm/.env:/home/work/hugegraph-llm/.env \
  -p 8001:8001 --network hugegraph-net hugegraph/rag

# 4. Monitor logs
docker logs -f rag

Option 3: Build from Source

For development and customization:

# 1. Start HugeGraph Server
docker run -itd --name=server -p 8080:8080 hugegraph/hugegraph

# 2. Install UV package manager (if not already installed)
curl -LsSf https://astral.sh/uv/install.sh | sh

# 3. Clone and setup project
git clone https://github.com/apache/incubator-hugegraph-ai.git
cd incubator-hugegraph-ai

# Configure environment (see config.md for detailed options), .env will auto create if not exists

# 4. Install dependencies and activate environment
# NOTE: If download is slow, uncomment mirror lines in ../pyproject.toml or use: uv config --global index.url https://pypi.tuna.tsinghua.edu.cn/simple
# Or create local uv.toml with mirror settings to avoid git diff (see uv.toml example in root)
uv sync --extra llm  # Automatically creates .venv and installs dependencies
source .venv/bin/activate  # Activate once - all commands below assume this environment

# 5. Launch RAG demo
python -m hugegraph_llm.demo.rag_demo.app
# Access at: http://127.0.0.1:8001

# 6. (Optional) Custom host/port
python -m hugegraph_llm.demo.rag_demo.app --host 127.0.0.1 --port 18001

Additional Setup (Optional)

Note

The following commands assume you're in the activated virtual environment from step 4 above

# To use vector database backends (e.g., Milvus, Qdrant), sync the optional dependencies:
uv sync --extra vectordb

# Download NLTK stopwords for better text processing
python ./src/hugegraph_llm/operators/common_op/nltk_helper.py

# Update configuration files
python -m hugegraph_llm.config.generate --update

Tip

  • uv sync automatically creates virtual environment (.venv) and installs all dependencies
  • Activate once with source .venv/bin/activate - all subsequent commands assume this environment
  • Check our Quick Start Guide for detailed usage examples

💡 Usage Examples

Knowledge Graph Construction

Interactive Web Interface

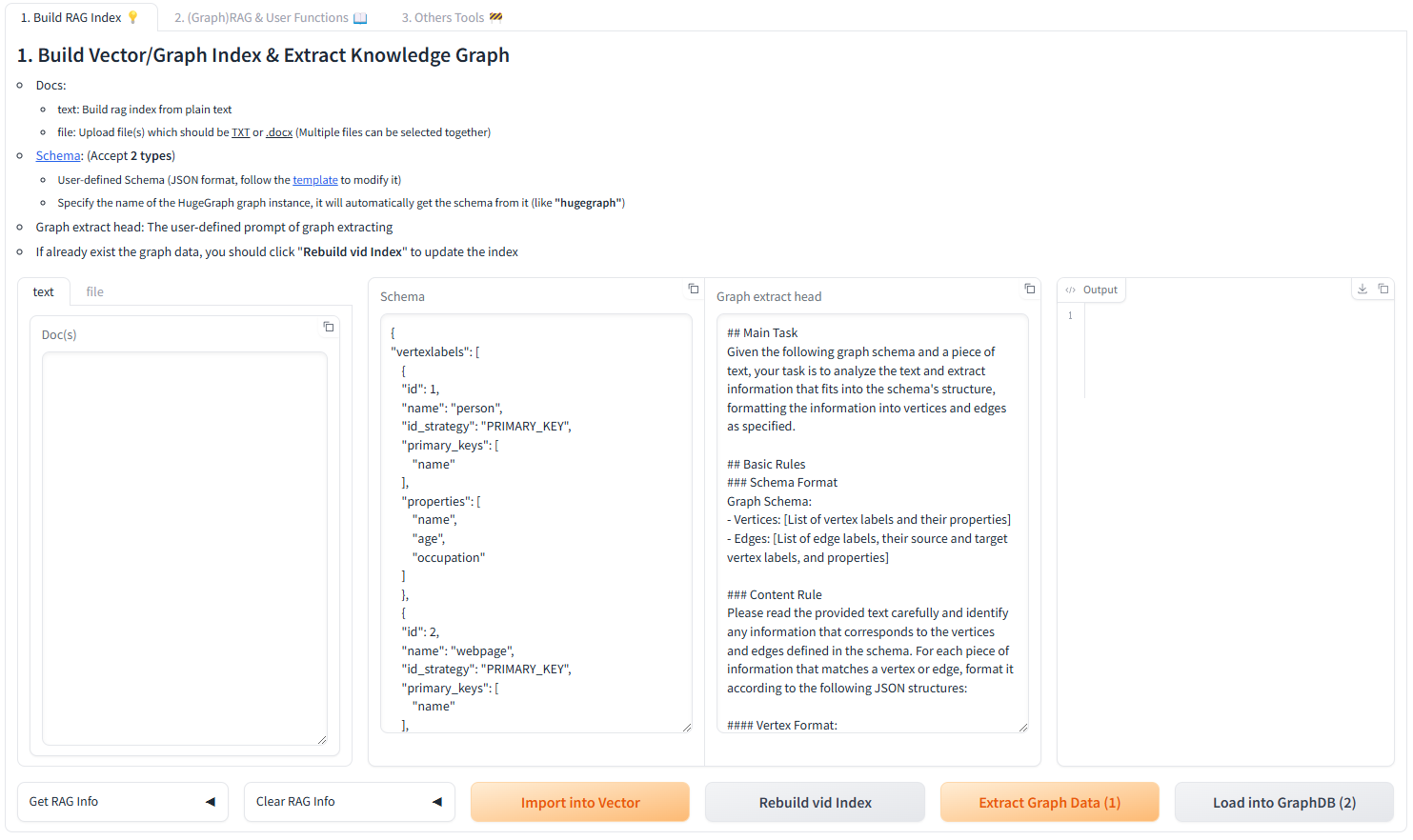

Use the Gradio interface for visual knowledge graph building:

Input Options:

  • Text: Direct text input for RAG index creation
  • Files: Upload TXT or DOCX files (multiple selection supported)

Schema Configuration:

  • Custom Schema: JSON format following our template
  • HugeGraph Schema: Use existing graph instance schema (e.g., "hugegraph")

Knowledge Graph Builder

🔧 Configuration

After running the demo, configuration files are automatically generated:

  • Environment: hugegraph-llm/.env
  • Prompts: hugegraph-llm/src/hugegraph_llm/resources/demo/config_prompt.yaml

Language Support

The system supports both English and Chinese prompts. To switch languages:

  1. Edit .env file: Change LANGUAGE=en to LANGUAGE=CN (or vice versa)
  2. Restart the application: The system will automatically regenerate prompts in the selected language

Supported Values:

  • LANGUAGE=EN - English prompts (default)
  • LANGUAGE=CN - Chinese prompts (中文提示词)

Note

Configuration changes are automatically saved when using the web interface. For manual changes, simply refresh the page to load updates.

LLM Provider Support: This project uses LiteLLM for multi-provider LLM support.

Programmatic Examples (new workflow engine)

If you previously used high-level classes like RAGPipeline or KgBuilder, the project now exposes stable flows through the Scheduler API. Use SchedulerSingleton.get_instance().schedule_flow(...) to invoke workflows programmatically. Below are concise, working examples that match the new architecture.

  1. RAG (graph-only) query example
from hugegraph_llm.flows.scheduler import SchedulerSingleton

scheduler = SchedulerSingleton.get_instance()
res = scheduler.schedule_flow(
  "rag_graph_only",
  query="Tell me about Al Pacino.",
  graph_only_answer=True,
  vector_only_answer=False,
  raw_answer=False,
  gremlin_tmpl_num=-1,
  gremlin_prompt=None,
)

print(res.get("graph_only_answer"))
  1. RAG (vector-only) query example
from hugegraph_llm.flows.scheduler import SchedulerSingleton

scheduler = SchedulerSingleton.get_instance()
res = scheduler.schedule_flow(
  "rag_vector_only",
  query="Summarize the career of Ada Lovelace.",
  vector_only_answer=True,
  vector_search=True
)

print(res.get("vector_only_answer"))
  1. Text -> Gremlin (text2gremlin) example
from hugegraph_llm.flows.scheduler import SchedulerSingleton

scheduler = SchedulerSingleton.get_instance()
response = scheduler.schedule_flow(
  "text2gremlin",
  "find people who worked with Alan Turing",
  2,  # example_num
  "hugegraph",  # schema_input (graph name or schema)
  None,  # gremlin_prompt_input (optional)
  ["template_gremlin", "raw_gremlin"],
)

print(response.get("template_gremlin"))
  1. Build example index (used by text2gremlin examples)
from hugegraph_llm.flows.scheduler import SchedulerSingleton

examples = [{"id": "natural language query", "gremlin": "g.V().hasLabel('person').valueMap()"}]
res = SchedulerSingleton.get_instance().schedule_flow("build_examples_index", examples)
print(res)

Migration guide: RAGPipeline / KgBuilder → Scheduler flows

Why the change: the internal execution engine was refactored to a pipeline-based scheduler (GPipeline + GPipelineManager). The scheduler provides a stable entrypoint while keeping flow implementations modular.

If you need help migrating a specific snippet, open a PR or issue and include the old code — we can provide a targeted conversion.

🤖 Developer Guidelines

[!IMPORTANT] > For developers contributing to hugegraph-llm with AI coding assistance:

  • Start Here: First read ../rules/README.md for the complete AI-assisted development workflow
  • Module Context: Rename AGENTS.md in this directory as context for your LLM (e.g., CLAUDE.md, copilot-instructions.md)
  • Code Analysis: Follow comprehensive analysis methodology in ../rules/prompts/project-deep.md
  • Documentation: Maintain structured documentation standards from ../rules/prompts/project-general.md
  • Quality Standards: Ensure type annotations, proper testing, and consistent patterns
  • Business Logic: Focus on graph-LLM integration logic and RAG pipeline optimization

These guidelines ensure consistent code quality and maintainable graph-AI integrations.

📚 Additional Resources

  • Graph Visualization: Use HugeGraph Hubble for data analysis and schema management
  • API Documentation: Explore our REST API endpoints for integration
  • Community: Join our discussions and contribute to the project

License: Apache License 2.0 | Community: Apache HugeGraph
