Where are the SWD-pins on this watch?

[espruino-discuss3]

Posted at 2016-02-18 by luwar

I bought a watch very similar to this one mentioned by Gordon and want to read out the firmware via SWD (with stm32f4-discovery). But I couldn't find SWDCLK.

The cpu is DA14580 (datasheet) from Dialog Semiconductor. Everything (e.g., SWDIO) is labeled well - but SWDCLK is missing. I can't believe it.

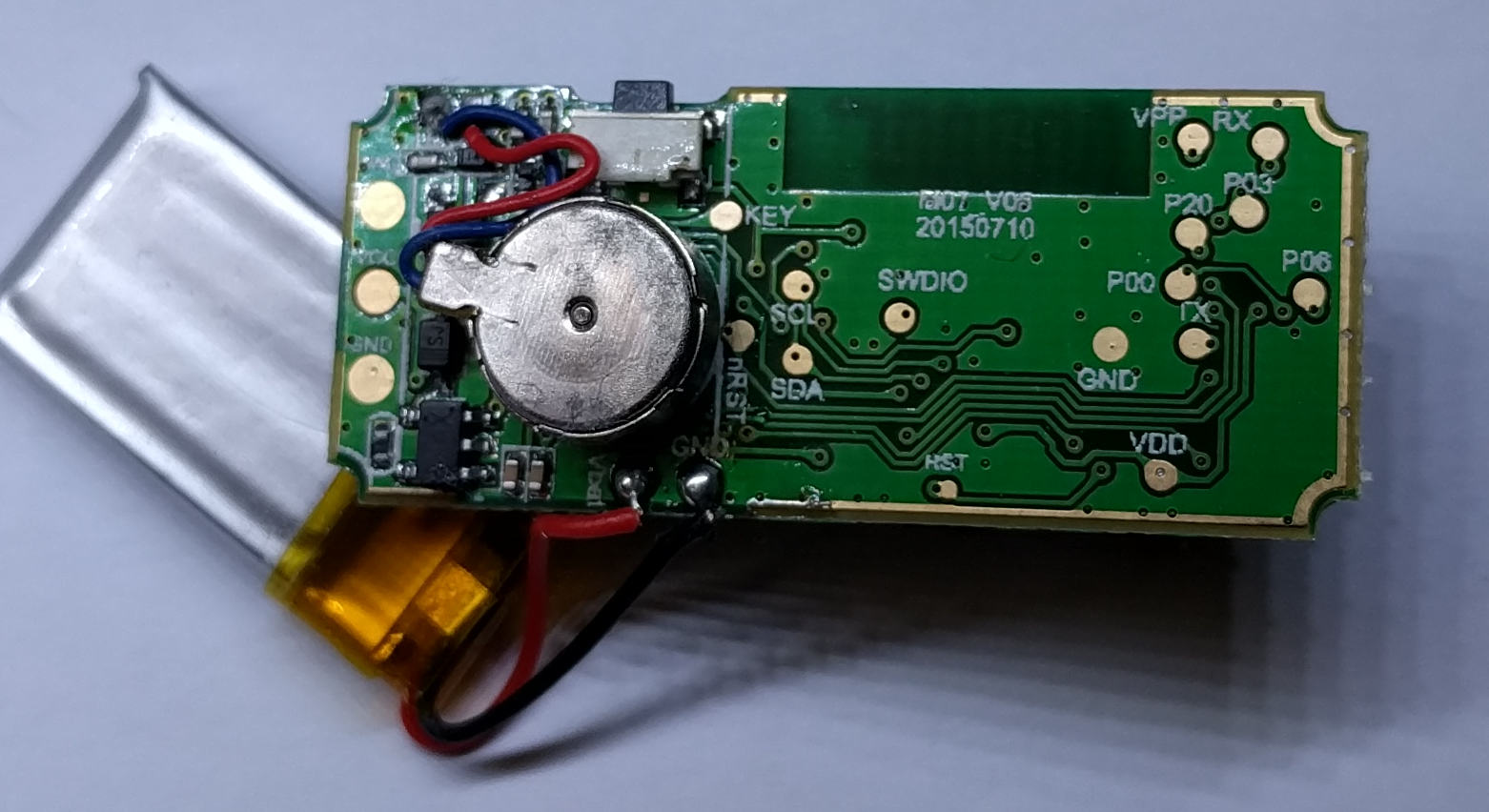

Does anybody have an idea about the meaning of pins in the picture?

---

Attachments:

• watch.png

[gfwilliams]

Posted at 2016-02-19 by @gfwilliams

Hmm, personally I'm not sure - you'd have to look at the chip's datasheet and match the pin names up - I know the ones on the watch I looked at were named a bit strangely...
