How to flash an ESP32 board (WiPy 2.0)

[espruino-discuss3]

Posted at 2017-05-22 by h3rald

Hi,

I tried to follow the docs on how to flash an ESP32 board, and I read that from release 1v92 pre-built binaries should be available.

I downloaded the 1v92 release zip file and indeed I found an espruino_1v92_esp32.bin file. But what about the two other files: bootloader.bin and partitions_espruino.bin? Is there anywhere I can get those two files as well without having to manually build (I did try building the firmware but didn't go that well).

Thank you in advance,

[espruino-discuss3]

Posted at 2017-05-22 by h3rald

Sorted and managed to flash properly :)

By looking into the provisions.sh script, I was able to get the files from within the following archive:

https://github.com/espruino/EspruinoBuildTools/raw/master/esp32/deploy/app.tgz

...Maybe you could distribute them along with the official distribution package...

---

Posted at 2017-05-22 by Wilberforce

All of the bin files are in a tgz file for the next release

---

Posted at 2017-05-24 by LawrenceDon2014

I put bootloader.bin,partitions_espruino.bin,espruino_1v92_esp32.bin in a zip file, you can use these files to flash espruino on your esp32.

---

Attachments:

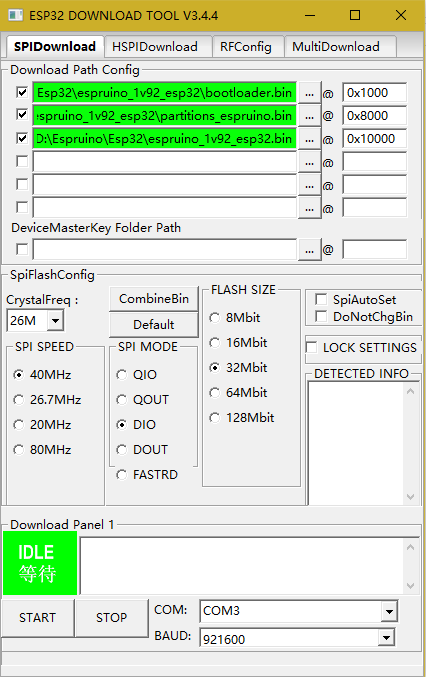

• ESP32_Flash_Setup.PNG
• espruino_1v92_esp32.zip

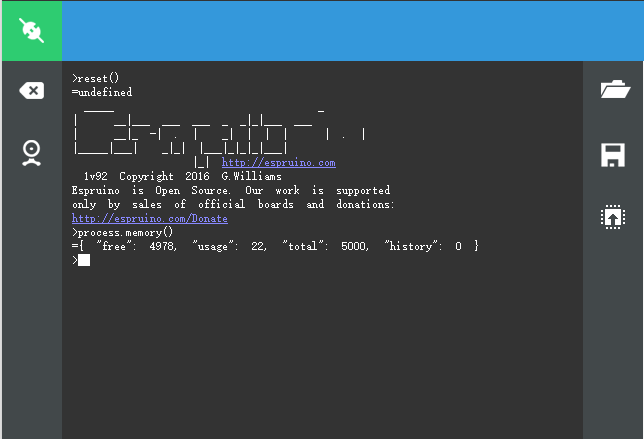

• Espruino_ESP32_1v92.PNG
