ATLASWeb

Source: Atmospheric Lagrangian dispersion model for tephra transport and deposition

https://www.sciencedirect.com/science/article/pii/S0098300418310008?dgcid=rss_sd_all

Installation

In the root directory, run the following command to install necessary dependencies:

npm install

Development

In order to compile the code, from the repository folder, type in your terminal

npm install & npm start

This will install the dependencies required and run the start script to run the application in the browser.

Description

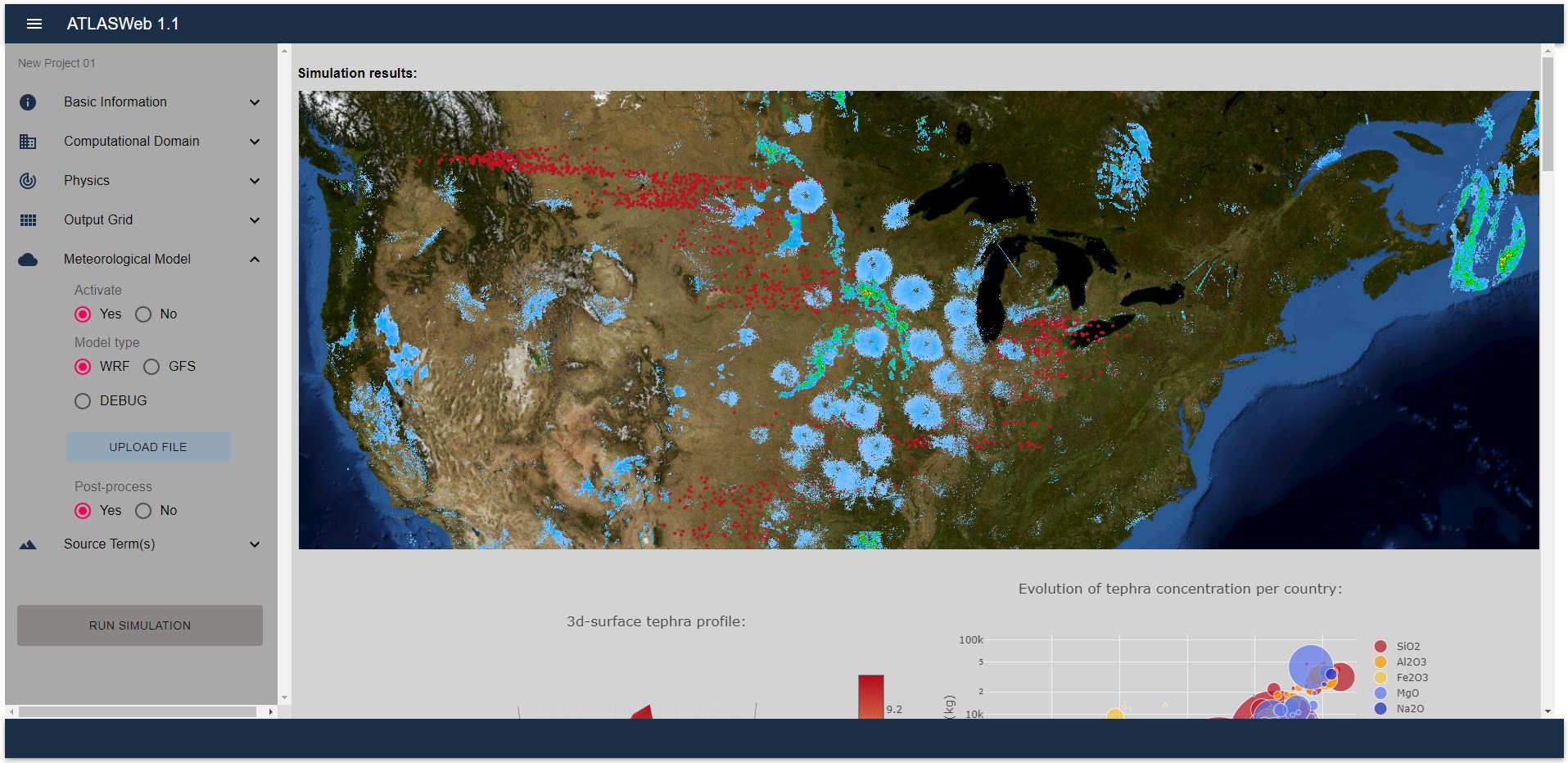

React + Typescript app to display calculated results from ATLAS 1.0:Atmospheric Lagrangian dispersion model for tephra transport and deposition, with encapsulated Plotly-D3 charts as React components.

Features

Bars
Boxes
Bubbles
Histogram
Geographic Map
Animated Map

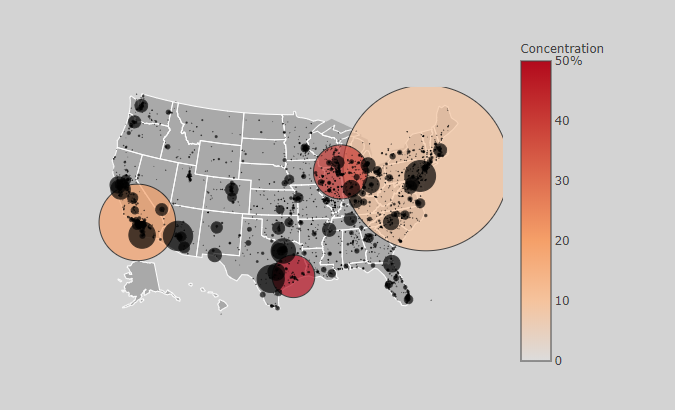

Bubbles Map
Regression

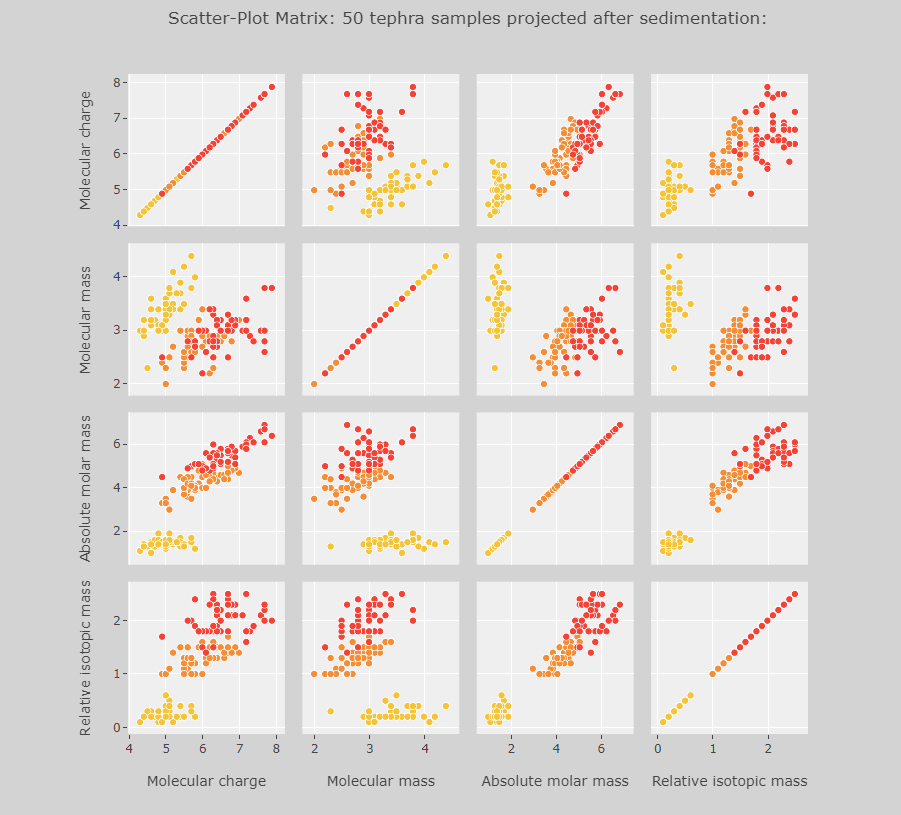

Splom

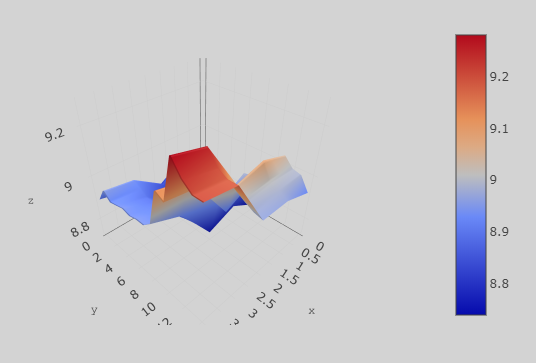

Surface3D

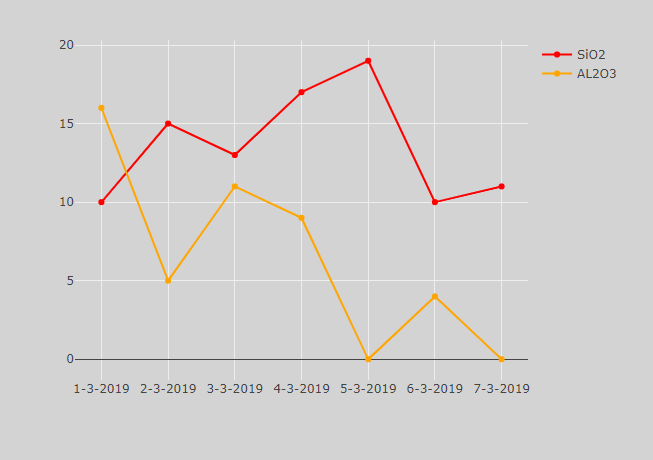

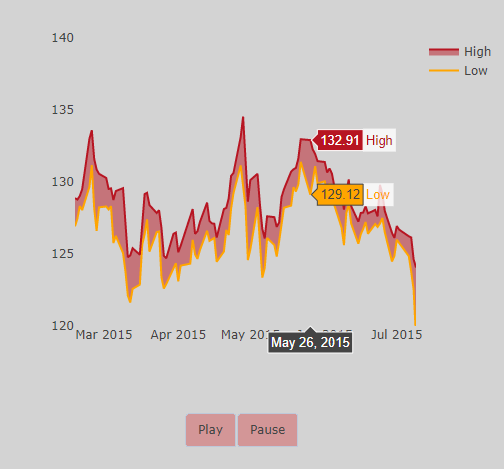

Timeline

Todo

More Charts
More Animations
Tests

Charts

Collection of interactive charts:

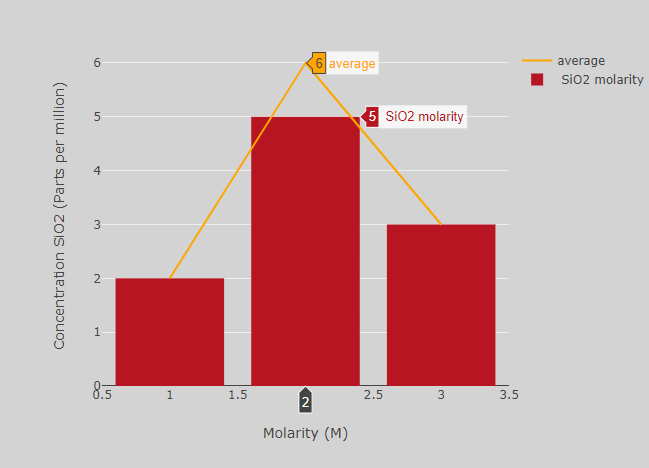

bars

import React from "react";
import Plot from "react-plotly.js";
import fetchData from "../../utils/data/parser";
import configurationJSON from "../../utils/config.json"
import layoutJSON from "../../utils/layout.json"

interface IDataModel{
  x: String[],
  y: String[],
  name: String,
  type: String,
  mode: String,
  marker: { color: String }
}

const Bars:React.FC = ():JSX.Element => {
  const [data, setData] = React.useState([]);
  const [layout, setLayout] = React.useState({});
  const [config, setConfig] = React.useState({});

  React.useEffect(() => {

    async function setChart() {
      const rows:[] =  await fetchData("./csv/bars.csv")

      function treatData(rows:any[]) {
        var data = [];
        for (var i = 0; i < rows.length - 1; i++) {
          var dataRow:IDataModel = {
            name: rows[i].name,
            type: rows[i].type,
            mode: rows[i].mode,
            x: [rows[i].x__001, rows[i].x__002, rows[i].x__003],
            y: [rows[i].y__001, rows[i].y__002, rows[i].y__003],
            marker: { color: rows[i].marker__color },
          }
          data.push(dataRow);
        }
        return data
      }

      var chartConfig = configurationJSON.config;
      var chartLayout = layoutJSON.layout.bars;
      var chartData = treatData(rows);

      setData(chartData);
      setConfig(chartConfig);
      setLayout(chartLayout);
    }
    setChart();
  }, []);

  return <Plot data={data} layout={layout} config={config} />;
};

export default Bars;

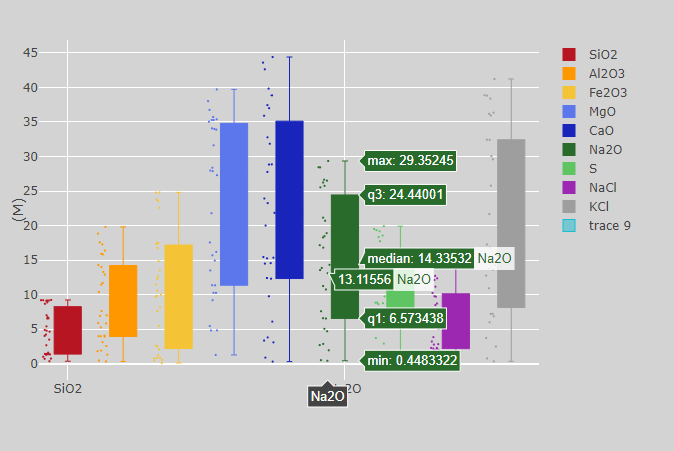

boxes

import React from "react";
import Plot from "react-plotly.js";
import  fetchData   from "../../utils/data/parser";
import configurationJSON from "../../utils/config.json"
import layoutJSON from "../../utils/layout.json"

interface IDataModel{
  y: String[]
  type: String,
  name: String,
  jitter: Number,
  fillcolor: String,
  boxpoints: String,
  whiskerwidth: Number,
  marker: { size: Number },
  line: { width: Number, color: String },
}

const Boxes:React.FC = ():JSX.Element => {
  const [data, setData] = React.useState([]);
  const [layout, setLayout] = React.useState({});
  const [config, setConfig] = React.useState({});

  React.useEffect(() => {

    async function setChart() {
      const rows:[] = await fetchData("./csv/boxes.csv")

      function treatData(rows:any[]) {
        var data = [];
        for (var i = 0; i < rows.length; i++) {
          var dataRow:IDataModel = {
            type: "box",
            name: rows[i].name,
            boxpoints: "all",
            jitter: 0.5,
            whiskerwidth: 0.2,
            fillcolor: rows[i].fillcolor,
            marker: { size: 2 },
            line: { width: 1, color:rows[i].fillcolor },
            y: [rows[i].y__0, rows[i].y__1, rows[i].y__2, rows[i].y__3, rows[i].y__4, rows[i].y__5,
            rows[i].y__6, rows[i].y__7, rows[i].y__8, rows[i].y__9, rows[i].y__10, rows[i].y__11,
            rows[i].y__12, rows[i].y__13, rows[i].y__14, rows[i].y__15, rows[i].y__16, rows[i].y__17,
            rows[i].y__18, rows[i].y__19, rows[i].y__20, rows[i].y__21, rows[i].y__22, rows[i].y__23,
            rows[i].y__24, rows[i].y__25, rows[i].y__26, rows[i].y__27, rows[i].y__28, rows[i].y__29,
            rows[i].y__30]
          }
          data.push(dataRow);
        }
        return data
      }

      var chartConfig = configurationJSON.config;
      var chartLayout = layoutJSON.layout.boxes;
      var chartData = treatData(rows);

      setData(chartData);
      setConfig(chartConfig);
      setLayout(chartLayout);
    }

    setChart();
  }, []);

  return <Plot data={data} layout={layout} config={config} />
};

export default Boxes;

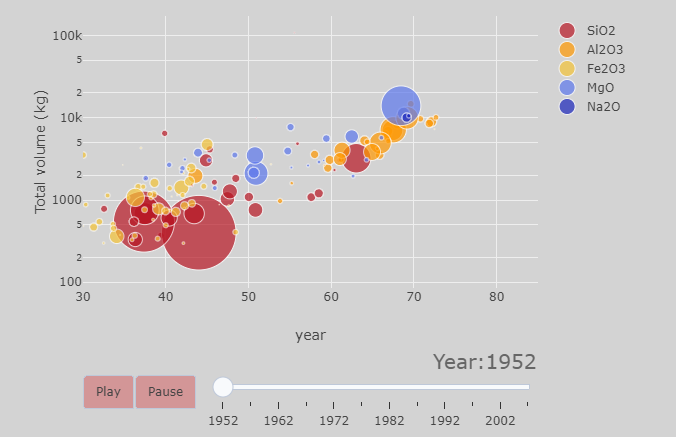

bubbles

import React from "react";
import Plot from "react-plotly.js";
import configurationJSON from "../../utils/config.json"
import layoutJSON from "../../utils/layout.json";
import fetchData from "../../utils/data/parser";

interface IDataModel {
  name: String,
  x: Number,
  y: Number,
  id: Number,
  text: String,
  mode: String,
  marker: {
    size: Number,
    sizemode: String,
    sizeref: Number,
    color: String
  }
}

const Bubbles:React.FC = ():JSX.Element => {
  const [data, setData] = React.useState([]);
  const [frames, setFrames] = React.useState([]);
  const [layout, setLayout] = React.useState({});
  const [config, setConfig] = React.useState({});

  React.useEffect(() => {

    async function setChart() {
      const rows: [] = await fetchData("./csv/bubbles.csv")

      function treatData(rows:any[]) {
        var traces = [];
        var frames = [];
        var lookup = {};
        function getData(year, continent) {
          var byYear, trace;
          if (!(byYear = lookup[year])) {
            byYear = lookup[year] = {};
          }
          if (!(trace = byYear[continent])) {
            trace = byYear[continent] = {
              x: [],
              y: [],
              id: [],
              text: [],
              marker: { size: [] },
            };
          }
          return trace;
        }

        for (var i = 0; i < rows.length; i++) {
          var datum = rows[i];
          var trace = getData(datum.year, datum.continent);
          trace.text.push(datum.country);
          trace.id.push(datum.country);
          trace.x.push(datum.lifeExp);
          trace.y.push(datum.gdpPercap);
          trace.marker.size.push(datum.pop);
        }

        var years = Object.keys(lookup);
        var firstYear = lookup[years[0]];
        var continents = Object.keys(firstYear);
        var colors = [
          "#b71522",
          "#ff9800",
          "#f4c336",
          "#5c77ec",
          "#1924bb"]

        for (i = 0; i < continents.length; i++) {
          var data = firstYear[continents[i]];
          var dataRow: IDataModel = {
            name: continents[i],
            x: data.x.slice(),
            y: data.y.slice(),
            id: data.id.slice(),
            text: data.text.slice(),
            mode: "markers",
            marker: {
              size: data.marker.size.slice(),
              sizemode: "area",
              sizeref: 200000,
              color: colors[i]
            }
          }
          traces.push(dataRow);
        }

        for (i = 0; i < years.length; i++) {
          frames.push({
            name: years[i],
            // eslint-disable-next-line
            data: continents.map(function (continent) {
              return getData(years[i], continent);
            }),
          });
        }

        return [traces, frames]
      }

      var chartConfig = configurationJSON.config;
      var chartLayout = layoutJSON.layout.bubbles;
      var data = treatData(rows);
      var chartData = data[0];
      var chartFrames = data[1];

      setData(chartData);
      setFrames(chartFrames);
      setConfig(chartConfig);
      setLayout(chartLayout);
    }
    setChart();
  }, []);

  return <Plot data={data} layout={layout} config={config} frames={frames} />
};

export default Bubbles;

histogram

import React from "react";
import Plot from "react-plotly.js";
import fetchData from "../../utils/data/parser";
import configurationJSON from "../../utils/config.json"
import layoutJSON from "../../utils/layout.json"

interface IDataModel {
  x?: Number[],
  y?: Number[],
  name: String,
  mode?: String,
  ncontours?: Number,
  colorscale?: String,
  reversescale?: Boolean,
  showscale?: Boolean,
  type: String,
  yaxis?: Number,
  xaxis?: Number,
  marker?: {
    size?: Number,
    opacity?: Number,
    color?: String
  }
}

const Histogram: React.FC = (): JSX.Element => {
  const [data, setData] = React.useState([]);
  const [layout, setLayout] = React.useState({});
  const [config, setConfig] = React.useState({});

  React.useEffect(() => {

    async function setChart() {
      const rows: [] = await fetchData("./csv/histogram.csv")

      function treatData(rows: any[]) {
        var data = [];

        for (var i = 1; i < 4; i++) {
          let x = []
          let y = []

          let values: any = Object.values(rows[i]);
          let keys = Object.keys(rows[i]);

          for (var j = 0; j < values.length; j++) {
            if (keys[j].indexOf("x_") > -1) {
              var value = values[j];
              var parsedValue = parseFloat(value);
              x.push(parsedValue);
            }
            if (keys[j].indexOf("y_") > -1) {
              var value2 = values[j];
              var parsedValue2 = parseFloat(value2);
              y.push(parsedValue2);
            }
          }

          var dataRow1: IDataModel = {
            x: x,
            y: y,
            mode: 'markers',
            name: rows[i].name,
            type: rows[i].type,
            marker: {
              color: rows[i].marker__color,
              size: rows[i].marker__size,
              opacity: rows[i].marker__opacity
            }
          }

          var dataRow2: IDataModel = {
            x: x,
            y: y,
            name: rows[i].name,
            ncontours: rows[i].ncontours,
            colorscale: rows[i].colorscale,
            reversescale: true,
            showscale: rows[i].showscale,
            type: rows[i].type,
          }

          var dataRow3: IDataModel = {
            x: x,
            name: rows[i].name,
            type: rows[i].type,
            marker: {
              color: rows[i].marker__color
            },
            yaxis: rows[i].yaxis,
          }

          var dataRow4: IDataModel = {
            y: y,
            name: rows[i].name,
            type: rows[i].type,
            marker: {
              color: rows[i].marker__color
            },
            xaxis: rows[i].xaxis
          }

          data.push([dataRow1, dataRow2, dataRow3, dataRow4]);
        }
        return data[0]
      }

      var chartConfig = configurationJSON.config;
      var chartLayout = layoutJSON.layout.histogram;
      var chartData = treatData(rows);

      setData(chartData);
      setConfig(chartConfig);
      setLayout(chartLayout);
    }
    setChart();
  }, []);

  return <Plot data={data} layout={layout} config={config} />
};

export default Histogram;

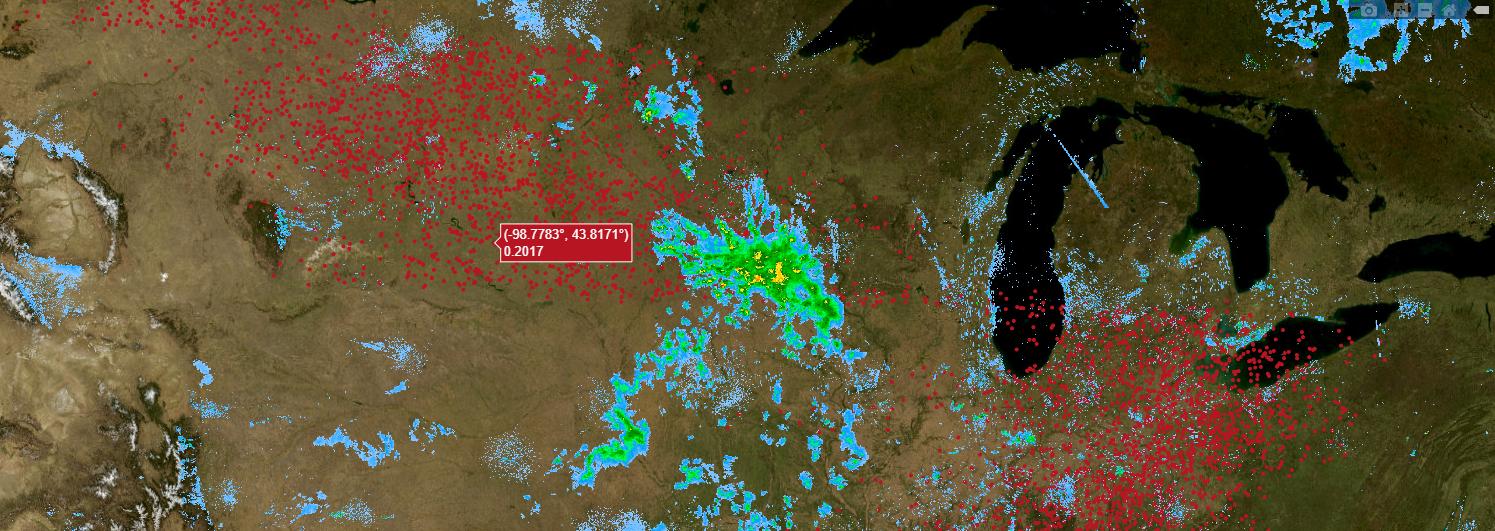

geomap

import React  from "react";
import Plot from "react-plotly.js";
import fetchData from "../../utils/data/parser";
import configurationJSON from "../../utils/config.json"
import layoutJSON from "../../utils/layout.json"

interface IDataModel {
  type: String,
  lon: Number,
  lat: Number,
  text: String,
  marker: {
    size: Number,
    color: String
  }
}

function unpack(rows, key) {
  return rows.map(function (row) {
    return row[key];
  });
}

const Map:React.FC = ():JSX.Element => {
  const [data, setData] = React.useState([]);
  const [layout, setLayout] = React.useState({});
  const [config, setConfig] = React.useState({});

  React.useEffect(() => {
    async function setChart() {
      const rows:[] = await fetchData("./csv/map.csv")

      var chartData:[IDataModel] = [
        {
          type: "scattermapbox",
          lon: unpack(rows, "Lon"),
          lat: unpack(rows, "Lat"),
          text: unpack(rows, "Globvalue"),
          marker: { color: "#b71522", size: 5 }
        },
      ];

      var chartConfig =  configurationJSON.config;
      var chartLayout = layoutJSON.layout.map;

      setData(chartData);
      setConfig(chartConfig);
      setLayout(chartLayout);
    }
    setChart();
  }, []);

  return <Plot data={data} layout={layout} config={config} />
};

export default Map;

animatedmap

import React from "react";
import Plot from "react-plotly.js";
import configurationJSON from "../../utils/config.json"
import fetchData from "../../utils/data/parser";

interface IDataModel{
  type: String,
  locationmode: String,
  locations: String,
  z: Number,
  text: String,
  zauto: Boolean,
  zmin: Number,
  zmax: Number
}

function filter_and_unpack(rows, key, year) {
  // eslint-disable-next-line
  return rows.filter((row) => row["year"] == year).map((row) => row[key]);
}

const MapAnimated:React.FC = ():JSX.Element => {
  const [data, setData] = React.useState([]);
  const [frames, setFrames] = React.useState([]);
  const [layout, setLayout] = React.useState({});
  const [config, setConfig] = React.useState({});

  React.useEffect(() => {
    async function setChart() {
      const rows: [] = await fetchData("./csv/mapAnim.csv")

      var frames = [];
      var slider_steps = [];

      var n = 11;
      var num = 1952;
      for (var i = 0; i <= n; i++) {
        var z = filter_and_unpack(rows, "lifeExp", num);
        var locations = filter_and_unpack(rows, "iso_alpha", num);
        frames[i] = {
          data: [{ z: z, locations: locations, text: locations }],
          name: num,
        };
        slider_steps.push({
          label: num.toString(),
          method: "animate",
          args: [
            [num],
            {
              mode: "immediate",
              transition: { duration: 300 },
              frame: { duration: 300 },
            },
          ],
        });
        num = num + 5;
      }

      var chartConfig =  configurationJSON.config;
      var chartData:[IDataModel] = [
        {
          type: "choropleth",
          locationmode: "world",
          locations: frames[0].data[0].locations,
          z: frames[0].data[0].z,
          text: frames[0].data[0].locations,
          zauto: false,
          zmin: 30,
          zmax: 90,
        },
      ];

      var chartLayout = {
        title: "Evolution of air pollutants concentration (PPM) per country:",
        paper_bgcolor: "transparent",
        plot_bgcolor: "transparent",
        width: 1080,
        height: 760,
        geo: {
          scope: "world",
          countrycolor: "rgb(255, 255, 255)",
          bgcolor: "rgba(255, 255, 255, 0.1)",
          showland: true,
          landcolor: "rgb(217, 217, 217)",
          showlakes: true,
          lakecolor: "rgb(255, 255, 255)",
          subunitcolor: "rgb(255, 255, 255)",
          lonaxis: {},
          lataxis: {},
        },
        updatemenus: [
          {
            x: 0.1,
            y: 1,
            yanchor: "top",
            xanchor: "right",
            showactive: false,
            direction: "left",
            type: "buttons",
            bgcolor: "#d39697",
            buttons: [
              {
                method: "animate",
                args: [
                  null,
                  {
                    fromcurrent: true,
                    transition: {
                      duration: 200,
                    },
                    frame: {
                      duration: 500,
                    },
                  },
                ],
                label: "Play",
              },
              {
                method: "animate",
                args: [
                  [null],
                  {
                    mode: "immediate",
                    transition: {
                      duration: 0,
                    },
                    frame: {
                      duration: 0,
                    },
                  },
                ],
                label: "Pause",
              },
            ],
          },
        ],
        sliders: [
          {
            active: 0,
            steps: slider_steps,
            x: 0.1,
            y: 1,
            len: 0.9,
            xanchor: "left",
            yanchor: "top",
            pad: { t: -30, b: 10, l: 20 },
            currentvalue: {
              visible: true,
              prefix: "Year:",
              xanchor: "right",
              font: {
                size: 20,
                color: "#666",
              },
            },
            transition: {
              duration: 300,
              easing: "cubic-in-out",
            },
          },
        ],
      };

      setData(chartData);
      setConfig(chartConfig);
      setLayout(chartLayout);
      setFrames(frames);
    }
    setChart();
  }, []);

  return <Plot data={data} layout={layout} frames={frames} config={config} />
};

export default MapAnimated;

bubblemap

import React from "react";
import Plot from "react-plotly.js";
import fetchData   from "../../utils/data/parser";
import configurationJSON from "../../utils/config.json"
import layoutJSON from "../../utils/layout.json"

interface IDataModel{
  type: String,
  locationmode: String,
  lat: Number,
  lon: Number,
  hoverinfo: String,
  text: String[],
  marker: {
    size: Number[],
    cmin: Number,
    cmax: Number,
    color: Number[],
    colorscale: String,
    colorbar: {
        title: String,
        ticksuffix: String,
        showticksuffix: String
    },
    line: {
        color: String
    }}
}

function unpack(rows, key) {
  return rows.map(function (row) { return row[key]; });
}

const MapBubbles:React.FC = ():JSX.Element => {
  const [data, setData] = React.useState([]);
  const [layout, setLayout] = React.useState({});
  const [config, setConfig] = React.useState({});

  React.useEffect(() => {
    async function setChart() {
      const rows:[] = await fetchData("./csv/mapBub.csv")

      var cityName = unpack(rows, 'name'),
        cityPop = unpack(rows, 'pop'),
        cityLat = unpack(rows, 'lat'),
        cityLon = unpack(rows, 'lon'),
        citySize: number[] = [],
        hoverText: string[] = [],
        scale = 50000;

      for (var i = 0; i < cityPop.length; i++) {
        var currentSize:number = cityPop[i] / scale || 0;
        var currentText:string = cityName[i] + " pop: " + cityPop[i];
        citySize.push(currentSize);
        hoverText.push(currentText);
      }

      var chartData:[IDataModel] = [{
        type: 'scattergeo',
        locationmode: 'USA-states',
        lat: cityLat,
        lon: cityLon,
        hoverinfo: 'text',
        text: hoverText,
        marker: {
          size: citySize,
          color: [10, 20, 40, 50],
          cmin: 0,
          cmax: 50,
          colorscale: 'Reds',
          colorbar: {
              title: 'Concentration',
              ticksuffix: '%',
              showticksuffix: 'last'
          },
          line: {
              color: 'black'
          }
        }
      }];

      var chartConfig = configurationJSON.config;
      var chartLayout = layoutJSON.layout.mapBubbles;

      setData(chartData);
      setConfig(chartConfig);
      setLayout(chartLayout);
    }
    setChart();
  }, []);

  return <Plot data={data} layout={layout} config={config} />
};

export default MapBubbles;

regression

import React from "react";
import Plot from "react-plotly.js";
import configurationJSON from "../../utils/config.json"
import layoutJSON from "../../utils/layout.json"
import fetchData from "../../utils/data/parser";

interface IDataModel {
  x: Number[],
  y: Number[],
  name: String,
  type: String,
  line: {
    color: String
  }
}

const Regression:React.FC = ():JSX.Element => {
  const [data, setData] = React.useState([]);
  const [layout, setLayout] = React.useState({});
  const [config, setConfig] = React.useState({});

  React.useEffect(() => {

    async function setChart() {
      const rows:[] = await fetchData("./csv/regression.csv")

      function treatData(rows) {
        var data = [];
        for (var i = 0; i < rows.length; i++) {
          var dataRow: IDataModel = {
            type: "line",
            name: rows[i].name,
            x: [rows[i].x__0, rows[i].x__1, rows[i].x__2, rows[i].x__3, rows[i].x__4, rows[i].x__5, rows[i].x__6],
            y: [rows[i].y__0, rows[i].y__1, rows[i].y__2, rows[i].y__3, rows[i].y__4, rows[i].y__5, rows[i].y__6],
            line: { color: rows[i].line__color },
          }
          data.push(dataRow);
        }
        return data
      }

      var chartConfig = configurationJSON.config;
      var chartLayout = layoutJSON.layout.regression;
      var chartData = treatData(rows);

      setData(chartData);
      setConfig(chartConfig);
      setLayout(chartLayout);
    }
    setChart();
  }, []);

  return <Plot data={data} layout={layout} config={config} />
};

export default Regression;

splom

import React from "react";
import Plot from "react-plotly.js";
import fetchData   from "../../utils/data/parser";
import configurationJSON from "../../utils/config.json"
import layoutJSON from "../../utils/layout.json"

interface IDataModel{
    type: String,
    text: String,
    dimensions: [
        { label: String, values: [] },
        { label: String, values: [] },
        { label: String, values: [] },
        { label: String, values: [] }
    ],
    marker: {
        color: String[],
        colorscale: any,
        size: Number,
        line: {
            color: String,
            width: Number
        }
    }
  }

function unpack(rows, key) {
    return rows.map(function (row) { return row[key.replace('.', ' ')]; });
}

const Splom:React.FC = ():JSX.Element => {
    const [data, setData] = React.useState([]);
    const [layout, setLayout] = React.useState({});
    const [config, setConfig] = React.useState({});

    React.useEffect(() => {
        async function setChart() {
            const rows:[] = await fetchData("./csv/splom.csv")

            let colors = []
            let i: number;

            for (i = 0; i < unpack(rows, 'class').length; i++) {
                if (unpack(rows, 'class')[i] === "SiO2") {
                    colors.push(0)
                } else if (unpack(rows, 'class')[i] === "Al2O3") {
                    colors.push(0.5)
                } else if (unpack(rows, 'class')[i] === "Fe2O3") {
                    colors.push(1)
                }
            }

            var pl_colorscale = [
                [0.0, '#f4c336'],
                [0.333, '#f4c336'],
                [0.333, '#f48e36'],
                [0.666, '#f48e36'],
                [0.666, '#f44336'],
                [1, '#f44336']
            ]

            var data:[IDataModel] = [{
                type: 'splom',
                dimensions: [
                    { label: 'Molecular charge', values: unpack(rows, 'Molecular charge') },
                    { label: 'Molecular mass', values: unpack(rows, 'Molecular mass') },
                    { label: 'Absolute molar mass', values: unpack(rows, 'Absolute molar mass') },
                    { label: 'Relative isotopic mass', values: unpack(rows, 'Relative isotopic mass') }
                ],
                text: unpack(rows, 'class'),
                marker: {
                    color: colors,
                    colorscale: pl_colorscale,
                    size: 7,
                    line: {
                        color: 'white',
                        width: 0.5
                    }
                }
            }]

            var chartLayout = layoutJSON.layout.splom;
            var chartConfig = configurationJSON.config;

            setData(data);
            setConfig(chartConfig);
            setLayout(chartLayout);
        }
        setChart();
    }, []);

    return <Plot data={data} layout={layout} config={config} />
};

export default Splom;

surface

import React from "react";
import Plot from "react-plotly.js";
import fetchData from "../../utils/data/parser";
import configurationJSON from "../../utils/config.json"
import layoutJSON from "../../utils/layout.json"

interface IDataModel {
  z: Number[],
  type: String,
  masterGraph: {
    title: String,
    xAxis: String,
    yAxis: String,
    zAxis: String
  }
}

const Surface3D:React.FC = ():JSX.Element => {
  const [data, setData] = React.useState([]);
  const [layout, setLayout] = React.useState({});
  const [config, setConfig] = React.useState({});

  React.useEffect(() => {
    async function setChart() {

      const rows:[] = await fetchData("./csv/surface3D.csv")

      function treatData(rows: []) {
        var data = [];
        var z = [];
        for (var i = 0; i < rows.length; i++) {
          z.push(Object.values(rows[i]))
        }
        var dataRow:IDataModel = {
          type: "surface",
          masterGraph: {
            title: "Surface3D Title",
            xAxis: "xAxis",
            yAxis: "yAxis",
            zAxis: "zAxis"
          },
          z: z,
        }
        data.push(dataRow);
        return data
      }

      var chartData = treatData(rows);
      var chartConfig = configurationJSON.config;
      var chartLayout = layoutJSON.layout.surface3D;

      setData(chartData);
      setConfig(chartConfig);
      setLayout(chartLayout);
    }
    setChart();
  }, []);

  return <Plot data={data} layout={layout} config={config} />;
};

export default Surface3D;

timeline

import React from "react";
import Plot from "react-plotly.js";
import fetchData from "../../utils/data/parser";
import configurationJSON from "../../utils/config.json"
import layoutJSON from "../../utils/layout.json"

interface IDataModel{
  y: String[],
  x: String[]
  type: String,
  mode: String,
  name: String,
  fill: String,
  line: { color: String },
}

function unpack(rows, key) {
    return rows.map(function(row) { return row[key]; });
  }

const Timeline:React.FC = ():JSX.Element => {
    const [data, setData] = React.useState([]);
    const [frames, setFrames] = React.useState([]);
    const [layout, setLayout] = React.useState({});
    const [config, setConfig] = React.useState({});

    React.useEffect(() => {
        async function setChart() {
            const rows:[] = await fetchData("./csv/timeline.csv")

            var frames = []
            var x = unpack(rows, 'Date')
            var y = unpack(rows, 'High')
            var x2 = unpack(rows, 'Date')
            var y2 = unpack(rows, 'Low')

            var n = 100;
            for (var i = 0; i < n; i++) {
              frames[i] = {data: [{x: [], y: []}, {x: [], y: []}]}
              frames[i].data[1].x = x.slice(0, i+1);
              frames[i].data[1].y = y.slice(0, i+1);
              frames[i].data[0].x = x2.slice(0, i+1);
              frames[i].data[0].y = y2.slice(0, i+1);
            }

            var trace2:IDataModel = {
              type: "scatter",
              mode: "lines",
              name: 'High',
              fill: 'tonexty',
              x: frames[5].data[1].x,
              y: frames[5].data[1].y,
              line: {color: '#b71522'}
            }

            var trace1:IDataModel = {
              type: "scatter",
              mode: "lines",
              name: 'Low',
              fill: '',
              x: frames[5].data[0].x,
              y: frames[5].data[0].y,
              line: {color: 'orange'}
            }

            var chartData = [trace1,trace2];
            var chartLayout = layoutJSON.layout.timeline;
            var chartConfig = configurationJSON.config;

            setFrames(frames);
            setData(chartData);
            setConfig(chartConfig);
            setLayout(chartLayout);
        }
        setChart();
    }, []);

    return <Plot data={data} layout={layout} config={config} frames={frames}/>
};

export default Timeline;

Credits

This library uses parts of D3.js and Plotly.js

Name		Name	Last commit message	Last commit date
Latest commit History 11 Commits
public		public
src		src
.gitignore		.gitignore
README.md		README.md
debug.log		debug.log
package-lock.json		package-lock.json
package.json		package.json
tsconfig.json		tsconfig.json
yarn.lock		yarn.lock

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

Repository files navigation

ATLASWeb

Table of Contents

Installation

Development

Description

Features

Todo

Charts

bars

boxes

bubbles

histogram

geomap

animatedmap

bubblemap

regression

splom

surface

timeline

Credits

About

Releases

Packages

Languages

Chris0150/ATLAS

Folders and files

Latest commit

History

Repository files navigation

ATLASWeb

Table of Contents

Installation

Development

Description

Features

Todo

Charts

bars

boxes

bubbles

histogram

geomap

animatedmap

bubblemap

regression

splom

surface

timeline

Credits

About

Resources

Stars

Watchers

Forks

Releases

Packages 0

Languages

Packages
