Android Toolbar

We’ll show you how to replace the ActionBar with the Toolbar.

Add Support Library

To implement Toolbar, make sure to add the Support Library setup instructions first. (make sure these versions have been updated.)

dependencies {
  compile 'com.android.support:appcompat-v7:22.2.0'
}

Replace the ActionBar

Change the theme to "Theme.AppCompat.Light.NoActionBar" at style.xml .

 <resources>

    <style name="AppTheme" parent="Theme.AppCompat.Light.NoActionBar">
        <item name="colorPrimary">@color/ColorPrimary</item>
        <item name="colorPrimaryDark">@color/ColorPrimaryDark</item>
        <item name="android:textColorPrimary">@color/textColorPrimary</item>
    </style>

</resources>

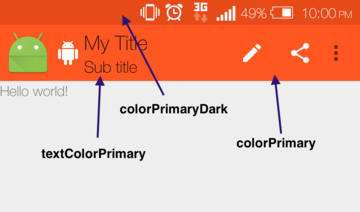

Add your color scheme for our project, you can see from the image below. There are attributes which you can set to get a basic color scheme of your App.

You need add a file color.xml in your values folder and add the color attributes as shown in the below code.

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <color name="ColorPrimary">#FF5722</color>
    <color name="ColorPrimaryDark">#E64A19</color>
    <color name="textColorPrimary">#ffe6dfde</color>
</resources>

Toolbar Widget

Now lets make a Toolbar, it is just like any other layout which can be placed at any place in your UI. We create a file called tool_bar.xml.

<?xml version="1.0" encoding="utf-8"?>
<android.support.v7.widget.Toolbar xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="?attr/actionBarSize"
    android:background="@color/ColorPrimary">

</android.support.v7.widget.Toolbar>

Include it in activity_main.xml.

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <include
        android:id="@+id/tool_bar"
        layout="@layout/tool_bar"/>

    <TextView
        android:text="@string/hello_world"
        android:layout_below="@+id/tool_bar"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"/>

</RelativeLayout>

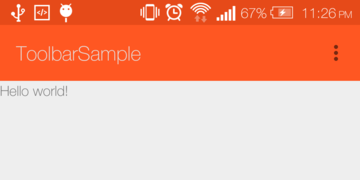

Set up the Toolbar

public class MainActivity extends AppCompatActivity {

    private Toolbar toolbar;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Attaching the layout to the toolbar object
        toolbar = (Toolbar) findViewById(R.id.tool_bar);
        // Setting toolbar as the ActionBar with setSupportActionBar() call
        setSupportActionBar(toolbar);
    }
}

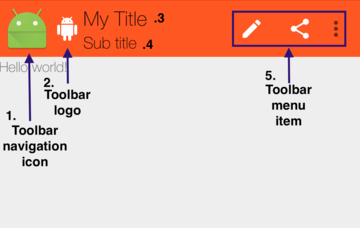

Toolbar component

There are some common components to customize the Toolbar.

1. setNavigationIcon
2. setLogo
3. setTitle
4. setSubtitle
5. set the menu_main.xml

// App Logo
toolbar.setLogo(R.mipmap.ab_android);
// Navigation Icon
toolbar.setNavigationIcon(R.mipmap.ic_launcher);
// Title
toolbar.setTitle("My Title");
// Sub Title
toolbar.setSubtitle("Sub title");

Add item in the menu_main.xml as shown below

<menu xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools" tools:context=".MainActivity">

    <item android:id="@+id/action_edit"
        android:title="edit"
        android:orderInCategory="80"
        android:icon="@mipmap/ab_edit"
        app:showAsAction="ifRoom" />

    <item android:id="@+id/action_share"
        android:title="share"
        android:orderInCategory="90"
        android:icon="@mipmap/ab_share"
        app:showAsAction="ifRoom" />

    <item android:id="@+id/action_settings"
        android:title="@string/action_settings"
        android:orderInCategory="100"
        app:showAsAction="never" />
</menu>

Set listener

Implements Toolbar.OnMenuItemClickListener

public class MainActivity extends AppCompatActivity implements Toolbar.OnMenuItemClickListener {

    private Toolbar toolbar;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        ...

        // Setting toolbar as the ActionBar with setSupportActionBar() call
        setSupportActionBar(toolbar);
        getSupportActionBar().setDisplayShowHomeEnabled(true);
        // Navigation Icon
        toolbar.setNavigationIcon(R.mipmap.ic_launcher);
        toolbar.setNavigationOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                Toast.makeText(MainActivity.this, "Click Navigation Icon", Toast.LENGTH_SHORT).show();
            }
        });

        //set Listener(must below of the setSupportActionBar)
        toolbar.setOnMenuItemClickListener(this);

    }

    @Override
    public boolean onOptionsItemSelected(MenuItem menuItem) {
        if (menuItem.getItemId() == android.R.id.home) {
            Toast.makeText(MainActivity.this, "Click Navigation Icon", Toast.LENGTH_SHORT).show();
        }
        return super.onOptionsItemSelected(menuItem);
    }
...

    @Override
    public boolean onMenuItemClick(MenuItem menuItem) {
        String msg = "";
        switch (menuItem.getItemId()) {
            case R.id.action_edit:
                msg += "Click edit";
                break;
            case R.id.action_share:
                msg += "Click share";
                break;
            case R.id.action_settings:
                msg += "Click setting";
                break;
        }

        if(!msg.equals("")) {
            Toast.makeText(MainActivity.this, msg, Toast.LENGTH_SHORT).show();
        }
        return true;
    }
}

References

• http://blog.mosil.biz/2014/10/android-toolbar/
• http://www.101apps.co.za/index.php/articles/using-toolbars-in-your-apps.html
• http://www.android4devs.com/2014/12/how-to-make-material-design-app.html
