Add sym/cmp for SPS30

[dbrgn]

SUMMARY

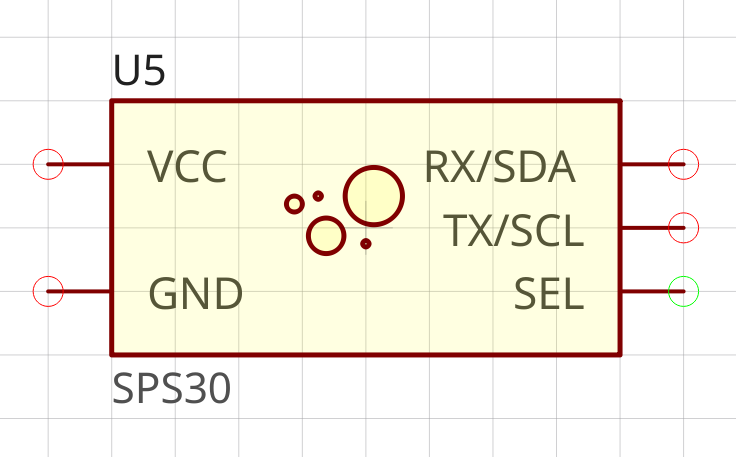

Add a sym / cmp for SPS30 particulate matter sensor.

Since the sensor has a 5-pin connector, I did not add any device (since it may be connected differently depending on the project).

CHECKLIST

• I have read and followed the library conventions.
• For packages, I followed IPC7351C (see details in library conventions).
• I'm the copyright owner of the added content (i.e. the changes are made by myself, not copied/imported from somewhere else).
• I agree to publish all my changes under the CC0 Public Domain License, allowing everyone to use and modify the content without any restrictions.

[ubruhin]

Hmm, since this sensor cannot be mounted directly on a PCB, what do we need this symbol for? 🙈 I suspect you actually want to place a connector on the PCB, don't you? 😉

[dbrgn]

Actually, at this stage I don't know yet how I will connect the sensor. I'm still designing the circuits/schematics.

During the design phase I prefer to add symbols that represent the type of device they stand for. If we have custom symbols for temperature and humidity sensors, why should I place a generic connector symbol next to those two just because this specific particle sensor comes in a package that uses wired connections instead of soldered connections?

This is just the symbol and component, so a user would need to create a custom device depending on how the final product is being assembled. (Or for schematic-only applications, the component can be used as-is.) I agree that devices which map components to generic connectors should not be added to the standard library.

If you think that it should be a general policy that solderless devices should not have their own symbols/components in the standard library, then we should clearly state that in the library convention docs.

[dbrgn]

The SPS30 has a JST ZH series connector. Many projects will probably use the same connector on the opposite end, so that a ZH-ZH double-ended cable can be used.

@ubruhin would you accept a device in this library that maps the SPS30 to the JST S5B-ZR header?

[ubruhin]

@ubruhin would you accept a device in this library that maps the SPS30 to the JST S5B-ZR header?

With the package in the JST library (added as dependency here), right?

I really don't like it, but I agree it would be handy for users... I might accept such a device ;)

[ubruhin]

Looks good so far, I'd agree to merge it without waiting for a concrete device 👍

[dbrgn]

With the package in the JST library (added as dependency here), right?

Yes!

Thanks for the review.
