DMPTOOL-API

What is it?

dmptool-api is the backend of the dmptool application, which it generates data managment plans for the ACTION projects.

Files

The api files in order are:

• application:
  • app.py : controls the requests and responses of the server.
  • config.py : contains the differents configurations for the server.
  • models.py : contains the model for the tables of the sql database.
  • resources.py : resources for the api (empty for the moment).
• db:
  • dbase.db : database sqlite3 for users and projects.
• manage.py : main python file with several command options for managing the database and starting the server.
• Dockerfile : file for dockerize the api.
• requirements.txt : the libraries needed for the proper operation of the server.

Command line methods

The manage.py file, which it is the main python file of the api, allows to manipulate the database and start the server with the command line. Possibles functions are:

• Manage tables: manages the tables of the sql database.
  • Create tables: creates the tables of the sql database.
    python manage.py create_tables
  • Delete tables: deletes all the tables of the sql database (Deletes all data).
    python manage.py drop_tables
• Manage users: manages the user of the sql database.
  • Create a normal user: username, password and email is required (promt input).
    python manage.py create_user
  • Create an admin user: username, password and email is required (promt input).
    python manage.py create_admin
  • Delete a user: username is required (promt input).
    python manage.py delete_user
• Manage projects: manages the projects of the sql database.
  • Create a project: project and description is required (promt input).
    python manage.py create_user
  • Delete a project: project is required (promt input).
    python manage.py delete_user
• Manage user-project relationship: manages the relaion many-to-many between users and projects of the sql database.
  • Create a user-project relationship: username and project name is required (promt input).
    python manage.py create_relation
  • Delete a user-project relationship: username and project name is required (promt input).
    python manage.py delete_relation
• Start server: starts the python server from app.py.
  • Development mode: starts the development server. Optionals parameters: host (-h, --host), port (-p, --port).
    python manage.py runserver
  • Production mode: starts the production server. Optionals parameters: host (-h, --host), port (-p, --port).
    python manage.py runprodserver
• Help: prints the commands with their description.
  python manage.py -?
  It could be used with others commands to get more info of them. For example:
  python manage.py runserver -?

Server routes

The app.py file controls the flask server in production and development mode. The differents URIs and methods allowed in the server are:

• Login: manage the user sessions.
  • /login : the user log in the server.
    • Method: GET
    • Request: basic authorization header from a user.
    • Response: json object with the username, email, project, project_description, access_token and refresh_token.
    • Status code: 200
  • /logout : the user logout of the server.
    • Method: DELETE
    • Request: bearer token of a user.
    • Response: json object with a msg of success.
    • Status code: 200
  • /changepassword : the user changes his password.
    • Method: PUT
    • Request: bearer token of a user and newpassword in the header.
    • Response: json object with a msg of success.
    • Status code: 200
• Dmp: manage the data managment plan of the mongodb.
  • /dmps : return all the dmps of a user.
    • Method: GET
    • Request: bearer token of a user.
    • Response: json object with a list of dmps.
    • Status code: 200
  • /dmps : create a new user dmp.
    • Method: POST
    • Request: bearer token of a user and a dmp (json) in the body.
    • Response: json object with a msg of success and the id of the dmp generated.
    • Status code: 201
  • /dmps/<dmp_id> : return the dmp with the dmp_id of a user.
    • Method: GET
    • Request: bearer token of a user.
    • Response: json object the requested dmp.
    • Status code: 200
  • /dmps/<dmp_id> : return the dmp with the dmp_id of a user.
    • Method: PUT
    • Request: bearer token of a user and a json in the body with the keys and values that need to be updated.
    • Response: json object with a msg of success and the id of the dmp updated.
    • Status code: 200
  • /dmps/<dmp_id> : delete a dmp with the dmp_id of a user.
    • Method: DELETE
    • Request: bearer token of a user.
    • Response: json object with a msg of success and the id of the dmp deleted.
    • Status code: 200
• Task: manage the task of the mongodb.
  • /tasks : return all the task in descending order of creation. It could be flter by the status and/or dmp id parameter.
    • Method: GET
    • Request: bearer token of a user and an optional status and dmp id parameters.
    • Response: json object with all the requested tasks.
    • Status code: 200
  • /tasks : create a new task.
    • Method: POST
    • Request: bearer token of a user and a task (json) in the body.
    • Response: json object with a msg of success and the id of the task generated.
    • Status code: 201
  • /tasks/<task_id> : return the task with the task_id.
    • Method: GET
    • Request: bearer token of a user.
    • Response: json object the requested task.
    • Status code: 200
• File: send files of the dmp.
  • /resources/docx/<file_id> : return the file_id.docx file.
    • Method: GET
    • Request: bearer token of a user.
    • Response: file_id.docx file.
    • Status code: 200
  • /resources/pdf/<file_id> : return the file_id.pdf file.
    • Method: GET
    • Request: bearer token of a user.
    • Response: file_id.pdf file.
    • Status code: 200
• Token: manage user tokens.
  • /refresh : return the file_id.docx file.
    • Method: GET
    • Request: refresh token of a user.
    • Response: json object with a new access_token.
    • Status code: 200
• Test: some test routes that will be deleted in the future.

Database Model

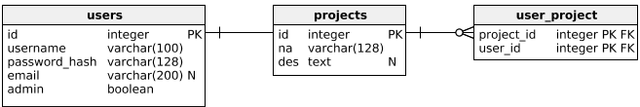

The models.py file contains the model for the tables of the sql database. As you can see in the image, the differents tables of the database are:

• user: table of the users of the api.
  • id: primary key of the user (Integer).
  • username: name of the user (String, unique and no nulleable).
  • password_hash: hashcode of the user's password (String and no nulleable).
  • email: email of the user, by default is none (String).
  • admin: defines if the user has admin permissions by default is false (Boolean).
• project: table of the projects of the api.
  • id: primary key of the user (Integer).
  • name: name of the user (String, unique and no nulleable).
  • description: description of the project, by default is none (Text).
• user_project: table of the relation Many-to-Many of the users and projects.
  • id_user: foreign key of the user (Integer).
  • id_project: foreign key of the project (Integer).

Configuration and dependencies

The config.py is the configuration file of the server. It contains the parameters for the CORS, JWT tokens, path or connection to the mongodb and sqlite3.

The Dockerfile file contains the specifics to build a Docker image. For build the image, you need to execute the following command in the project folder:
sudo docker build -t dmptool-api .
Before running the image, we need to create a mongo docker where the dmps and images will be saved:
docker run -d -p 27017:27017 --name mongodb mongo
Lastly, we run the docker image mapping the log, dbase and document folders to the host machine, and connecting the docker to our mongo docker:
docker run --name mydmptool-api -v /var/log/dmptool:/opt/log -v /home/dmptool/dbase-dmptool:/opt/db -v /home/dmptool/documents-dmptool:/opt/documents -p 5000:5000 --link mongodb:mongo -d dmptool-api

The requirements.txt contains the python libraries needed for the proper operation of the server. They could be installed by:
pip install -r requirements.txt

Future tasks

• Create README.md
• Finish README.md
• Delete test routes
• Add protection to files
• Update timestamp in the creation of the task.
• Filter task by id dmp.
• Order task by timestamp.
