Added tests for multiline text support #261

ANAMASGARD · 2025-10-21T16:03:20Z

Add Multi-line Text Support Throughout animint2

Closes #221

This PR enables newline characters (\n) to work in all text elements of animint2 visualizations. Users can now create multi-line text in plot titles, axis labels, legend titles, and geom_text labels.

What Now Works:
✅ Plot titles - ggtitle("Line 1\nLine 2")
✅ X-axis titles - xlab("X Axis\nSubtitle")
✅ Y-axis titles - ylab("Y Axis\nSubtitle")
✅ Legend titles - scale_color_discrete(name="Legend\nTitle")
✅ Text labels - geom_text(aes(label="Text\nLabel"))
✅ Tooltips - Already worked, still works (backward compatible)

Below is the screenshots of the scripts i ran locally to verify the test locally they fail as aspected

Tests check that \n converts to <br/> in: - plot titles (ggtitle) - axis titles (xlab/ylab) - legend titles - geom_text labels Currently fail since feature not implemented. Addresses #221

Changes: - R/z_multiline.R: new helper to convert \n to <br/> - R/z_animint.R: apply conversion to plot title, x/y axis titles - R/z_animintHelpers.R: apply conversion to legend titles and geom_text labels - inst/htmljs/animint.js: render <br/> as SVG tspan elements, fix overlap with proper height calculation - DESCRIPTION: add z_multiline.R to Collate - NEWS.md: document multiline text support Fixes #221

ANAMASGARD · 2025-10-21T16:21:26Z

Add Multi-line Text Support Throughout animint2

Fixes #221

Summary

This PR enables newline characters (\n) to work in all text elements of animint2 visualizations, not just tooltips. Users can now create multi-line text in plot titles, axis labels, legend titles, and geom_text labels.

What Now Works

✅ Plot titles - ggtitle("Line 1\nLine 2")
✅ X-axis titles - xlab("X Axis\nSubtitle")
✅ Y-axis titles - ylab("Y Axis\nSubtitle")
✅ Legend titles - scale_color_discrete(name="Legend\nTitle")
✅ Text labels - geom_text(aes(label="Text\nLabel"))
✅ Tooltips - Already worked, still works (backward compatible)

Visual Verification

The screenshot below demonstrates multi-line text working correctly in all contexts:

Example Usage

library(animint2)

data <- data.frame(
  x = 1:5,
  y = 1:5,
  group = c("A", "B", "C", "A", "B"),
  label = c("Single", "Two\nLines", "Three\nLines\nHere", "Text", "Label")
)

viz <- animint(
  plot1 = ggplot(data, aes(x, y, color = group, label = label)) +
    geom_point(size = 5) +
    geom_text(vjust = -1) +
    ggtitle("Multi-line Test\nIssue #221 Demonstration") +
    xlab("X Axis\n(Horizontal Position)") +
    ylab("Y Axis\n(Vertical Position)") +
    scale_color_discrete(name = "Data Group\n(Click to Select)")
)

animint2dir(viz, "output-dir")

tdhock · 2025-10-21T16:55:22Z

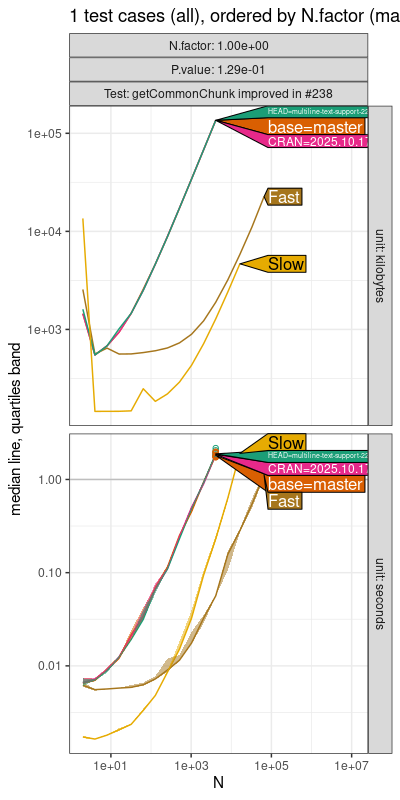

No obvious timing issues in HEAD=multiline-text-support-221

Generated via commit 4ac0712

Download link for the artifact containing the test results: ↓ atime-results.zip

Task	Duration
R setup and installing dependencies	2 minutes and 36 seconds
Installing different package versions	15 seconds
Running and plotting the test cases	3 minutes and 27 seconds

ANAMASGARD · 2025-10-21T17:26:06Z

Ran tests locally - all 19 multiline text tests pass successfully. The test failures shown are due to missing optional packages (mapproj, sp, XML) and GitHub API permissions, not related to this PR. Sir can you please help me figure out on how to pass the JS_Coverage test suite .

tdhock · 2025-10-21T17:53:49Z

To get this PR to close the corresponding issue, please add

Closes #221

on its own line, in the first comment of the PR.

tdhock · 2025-10-21T17:56:15Z

looks like a step in the right direction, thanks!
however here #261 (comment) the second line of the overall title "Issue #221 Demonstration" is going into the plotting area.
Can you please add a test which makes sure the bottom of this title element is above the plotting area? (it should fail for the current code)

tdhock · 2025-10-21T17:59:47Z

Also in #261 (comment) it seems like there is an inconsistency between the X and Y axes.

there is almost no space between the Y axis title (Vertical Position) and the Y axis ticks (2 3 4)
there is a big space between the X axis title (X Axis) and the X axis tick (3).

can this be adjusted to be more consistent please?
also it should be consistent with the case of single line X/y axis title, as below from https://5-merge--animint-manual-en.netlify.app/ch06/#aes-tooltip which was created with current master

tdhock

please add tests then fix

Tests check: - plot title doesn't overlap with plot area - x-axis and y-axis spacing is consistent - multiline spacing matches single-line baseline Tests currently fail, demonstrating the bugs in current code. Addresses feedback on PR #261.

Two fixes: 1. Add 5px margin below title to prevent overlap with plot area 2. Use same base spacing (30px) for both X and Y axis labels Both axes now have consistent spacing, and multiline titles stay above the plot area. Addresses feedback on PR #261.

tdhock · 2025-10-22T14:53:45Z

inst/htmljs/animint.js

+    var lines = textStr.split('<br/>');
+
+    if (lines.length > 1) {
+      // Multi-line text: create tspan elements to measure properly
+      var lineHeight = 1.2; // em units
+      lines.forEach(function(line, i) {
+        textElement.append('tspan')
+          .attr('x', -1000)
+          .attr('dy', i === 0 ? 0 : lineHeight + 'em')
+          .text(line);
+      });
+


this seems like an ovely complex way of measuring.
can't you just get the bounding box after rendering or something simpler like that?

also where does the -1000 come from? please avoid such "magic numbers"

Done , please review and also give your feedback if anything else need to be changed .

tdhock

please simplify height/width calculation

- removed hardcoded -1000 positioning - reuse setMultilineText() instead of duplicating logic - rely on getBBox() for accurate measurements fixes spacing issues

tdhock · 2025-10-22T16:57:54Z

inst/htmljs/animint.js

+      setMultilineText(textElement, pText);
+    } else {
+      // Single line: simple text rendering
+      textElement.text(pText);


it seems unusual that there needs to be a special case for multiple lines.

also this if length > 1 else pattern is repeated in the setMultilineText function.

please simplify

…nt/animint2 into multiline-text-support-221

tdhock · 2025-10-23T13:50:06Z

tests/testthat/test-multiline-spacing.R

+      xlab("X Label\nLine 2") +
+      ylab("Y Label\nLine 2")
+  )
+


please undo addition of empty space in functions and test_that blocks

tdhock · 2025-10-23T13:50:41Z

can you please post an updated screen shot?

ANAMASGARD · 2025-10-23T14:43:18Z

Updated screenshot after spacing fixes:

tdhock · 2025-10-27T16:18:59Z

can you please test increasing and decreasing font size?

#64 (comment)

ANAMASGARD added 2 commits October 21, 2025 21:31

add tests for multiline text support

77dd60b

Tests check that \n converts to <br/> in: - plot titles (ggtitle) - axis titles (xlab/ylab) - legend titles - geom_text labels Currently fail since feature not implemented. Addresses #221

ANAMASGARD requested a review from tdhock October 21, 2025 16:23

ANAMASGARD mentioned this pull request Oct 21, 2025

line breaks in various text elements #221

Open

tdhock requested changes Oct 21, 2025

View reviewed changes

ANAMASGARD and others added 3 commits October 22, 2025 14:30

Merge branch 'master' into multiline-text-support-221

34a76b0

add tests for multiline text spacing bugs

f7ccfc6

Tests check: - plot title doesn't overlap with plot area - x-axis and y-axis spacing is consistent - multiline spacing matches single-line baseline Tests currently fail, demonstrating the bugs in current code. Addresses feedback on PR #261.

fix multiline text spacing bugs

fdb0ddc

Two fixes: 1. Add 5px margin below title to prevent overlap with plot area 2. Use same base spacing (30px) for both X and Y axis labels Both axes now have consistent spacing, and multiline titles stay above the plot area. Addresses feedback on PR #261.

ANAMASGARD requested a review from tdhock October 22, 2025 13:58

tdhock reviewed Oct 22, 2025

View reviewed changes

tdhock requested changes Oct 22, 2025

View reviewed changes

ANAMASGARD and others added 2 commits October 22, 2025 21:32

simplify text measurement and remove magic numbers

9d4e1ba

- removed hardcoded -1000 positioning - reuse setMultilineText() instead of duplicating logic - rely on getBBox() for accurate measurements fixes spacing issues

Merge branch 'master' into multiline-text-support-221

1e06e57

ANAMASGARD requested a review from tdhock October 22, 2025 16:22

tdhock requested changes Oct 22, 2025

View reviewed changes

ANAMASGARD and others added 5 commits October 23, 2025 12:58

Resolve NEWS.md merge conflict - keep both PR#266 and PR#221 entries

6452fef

Merge branch 'multiline-text-support-221' of https://github.com/animi…

306df14

…nt/animint2 into multiline-text-support-221

Merge branch 'master' into multiline-text-support-221

f3e758c

Simplify multiline text rendering - remove redundant if-else pattern

fbfb3aa

Merge branch 'multiline-text-support-221' of https://github.com/animi…

50530fb

…nt/animint2 into multiline-text-support-221

ANAMASGARD requested a review from tdhock October 23, 2025 12:38

tdhock reviewed Oct 23, 2025

View reviewed changes

Remove unnecessary blank lines from test-multiline-spacing.R

400e49c

Remove extra blank lines from tests

4ac0712
