FFTodile

FFTodile is a small FFT accelerator chip project built on top of the Croc educational SoC. It combines a CVE2 RISC-V core, SRAM, OBI interconnect, standard peripherals, and a custom user-domain FFT accelerator. The physical implementation targets the open-source IHP SG13G2 130 nm PDK.

The repository contains RTL, bare-metal software, Verilator simulation, Yosys synthesis, OpenROAD backend scripts, KLayout finishing, CI automation, and the ArtistIC rendering flow used for mask-art and GitHub Pages previews.

Contents

• Project Overview
• Quick Start
• Repository Layout
• Architecture
• FFT Accelerator
• Software Interface
• Build and Verification
• ASIC Flow
• ArtistIC Flow
• Configuration
• GitHub Actions
• Development Guidelines
• Upstream and License

Project Overview

Current user-domain contents:

Path	Purpose
rtl/user_domain/fft/fft_ctrl_pkg.sv	Shared FFT control-state type definitions
rtl/user_domain/fft/fft_twiddle_lut_16.sv	16-point twiddle sine/cosine lookup table helper
rtl/user_domain/fft/fft_butterfly.sv	Configurable radix-2 butterfly math helper
rtl/user_domain/fft/fft_fsm.sv	FFT core state transition helper
rtl/user_domain/fft/fft_addr_gen.sv	FFT core address and loop-boundary helper
rtl/user_domain/fft/fft_counter_ctrl.sv	FFT core counter/register next-value helper
rtl/user_domain/fft/fft_sample_mem.sv	Local in-place FFT sample memory and access helper
rtl/user_domain/fft/fft_obi.sv	Memory-mapped OBI wrapper, register bank, memory transfers, interrupt, and cycle counter
rtl/user_domain/fft/fft_core.sv	Compact iterative fixed-point radix-2 FFT datapath
rtl/user_domain/user_rom.sv	Read-only chip identification string
sw/lib/inc/fft.h	Bare-metal FFT accelerator API
sw/lib/inc/fft_ref.h	Fixed-point software reference model for tests and benchmarks
sw/test/test_fft.c	Deterministic FFT correctness test
sw/test/test_sram.c	SRAM address/data test
sw/benchmark_fft.c	Software-vs-hardware FFT benchmark

The default build is a 16-point, forward, Q1.15-style fixed-point FFT with one arithmetic right shift per butterfly stage. Other supported compile-time variants are exercised in CI.

Quick Start

Initialize submodules once:

make init

Start the intended tool environment:

scripts/start_linux.sh

Inside the container shell, run the local preflight before pushing changes:

make preflight

Useful day-to-day commands:

make help
make sw
make test-fft
make bench-fft
make test-sram
make sim BIN=sw/bin/test/print_config.hex
make synth
make flow

make preflight is the closest local equivalent to the GitHub preflight smoke job. It runs script syntax checks, restores the default configuration, runs helloworld and print-config simulation, validates SoC introspection output, and checks the default FFT correctness/benchmark metrics.

Repository Layout

rtl/                  SystemVerilog SoC and user-domain RTL
rtl/user_domain/      FFTodile user-domain RTL
sw/                   Bare-metal software, tests, benchmark, and headers
verilator/            Verilator simulation flow
yosys/                Yosys synthesis flow
openroad/             Floorplan, placement, CTS, routing, and finishing flow
klayout/              DEF-to-GDS, seal ring, and fill flow
artistic/             ArtistIC logo/render/map flow
ihp13/                IHP SG13G2 technology integration and PDK submodule
scripts/              Developer helper scripts and formatting tools
.github/              CI workflows, composite actions, and CI helper scripts
doc/                  Documentation images

Architecture

FFTodile keeps the original Croc split between the main SoC and the user domain.

Current user-domain structure:

user_domain

fft_obi

fft_core

Main blocks:

• croc_domain: CVE2 core, SRAM banks, debug module, main OBI interconnect, SoC control, CLINT, UART, GPIO, timer, and optional iDMA.
• user_domain: user ROM, FFT accelerator, and an error subordinate for unmapped user-domain accesses.
• fft_obi: software-visible FFT register interface, source/destination memory transfers, status, interrupt enable, and cycle accounting.
• fft_core: iterative radix-2 FFT engine with local storage and a reused butterfly datapath.

The main interconnect protocol is OBI. Most generated physical outputs are ignored by git and should be treated as build artifacts.

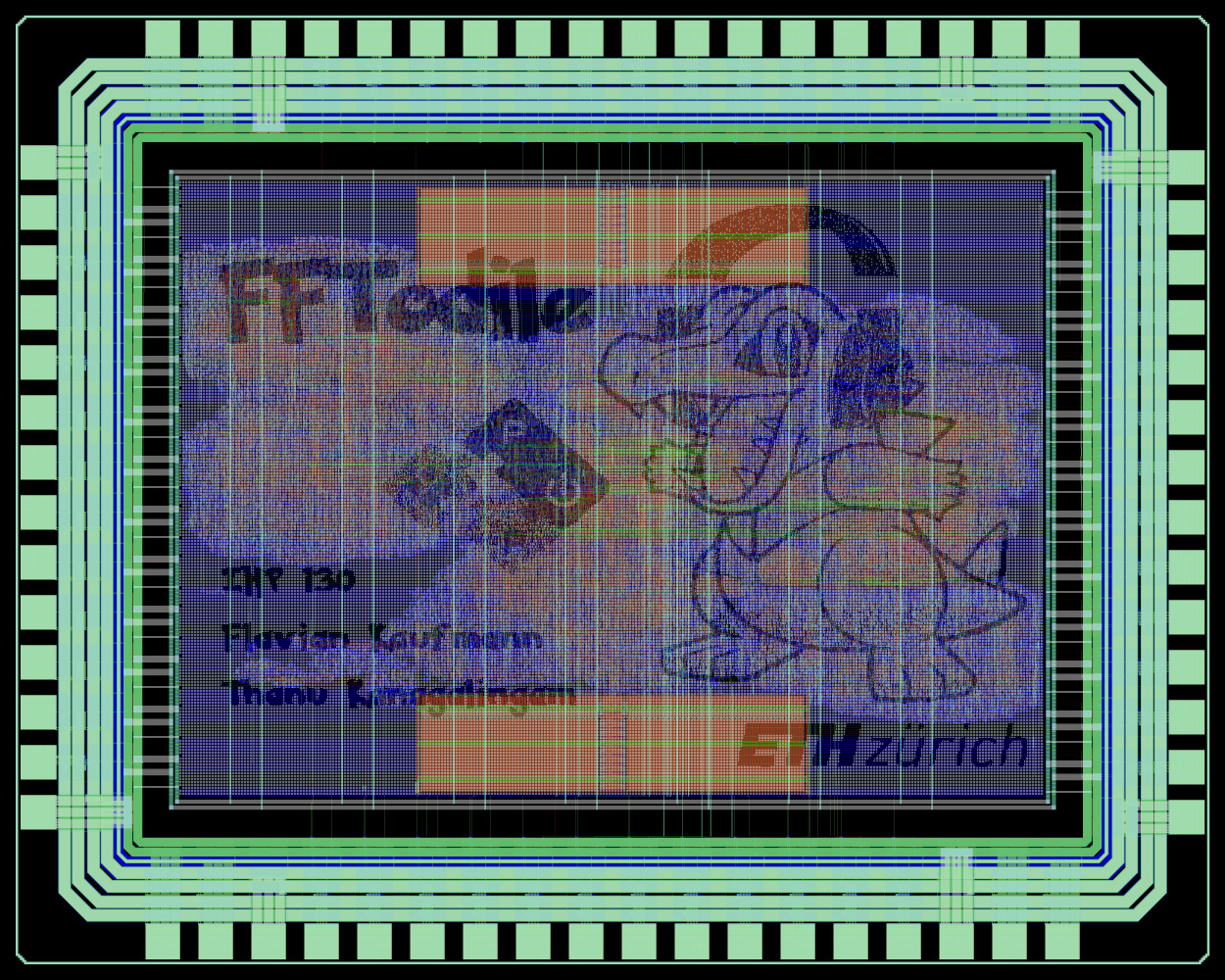

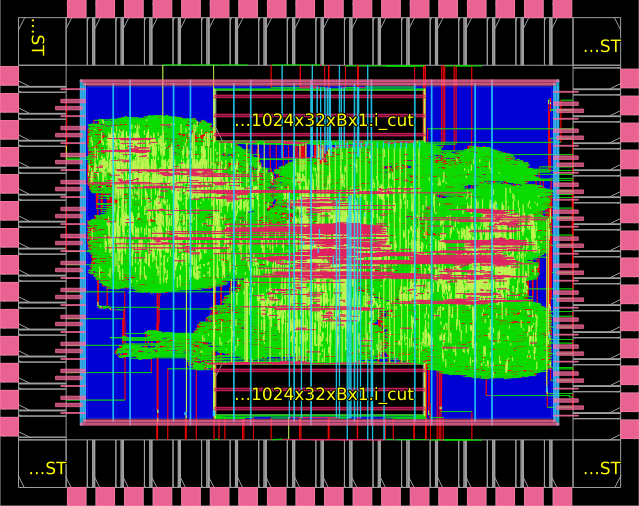

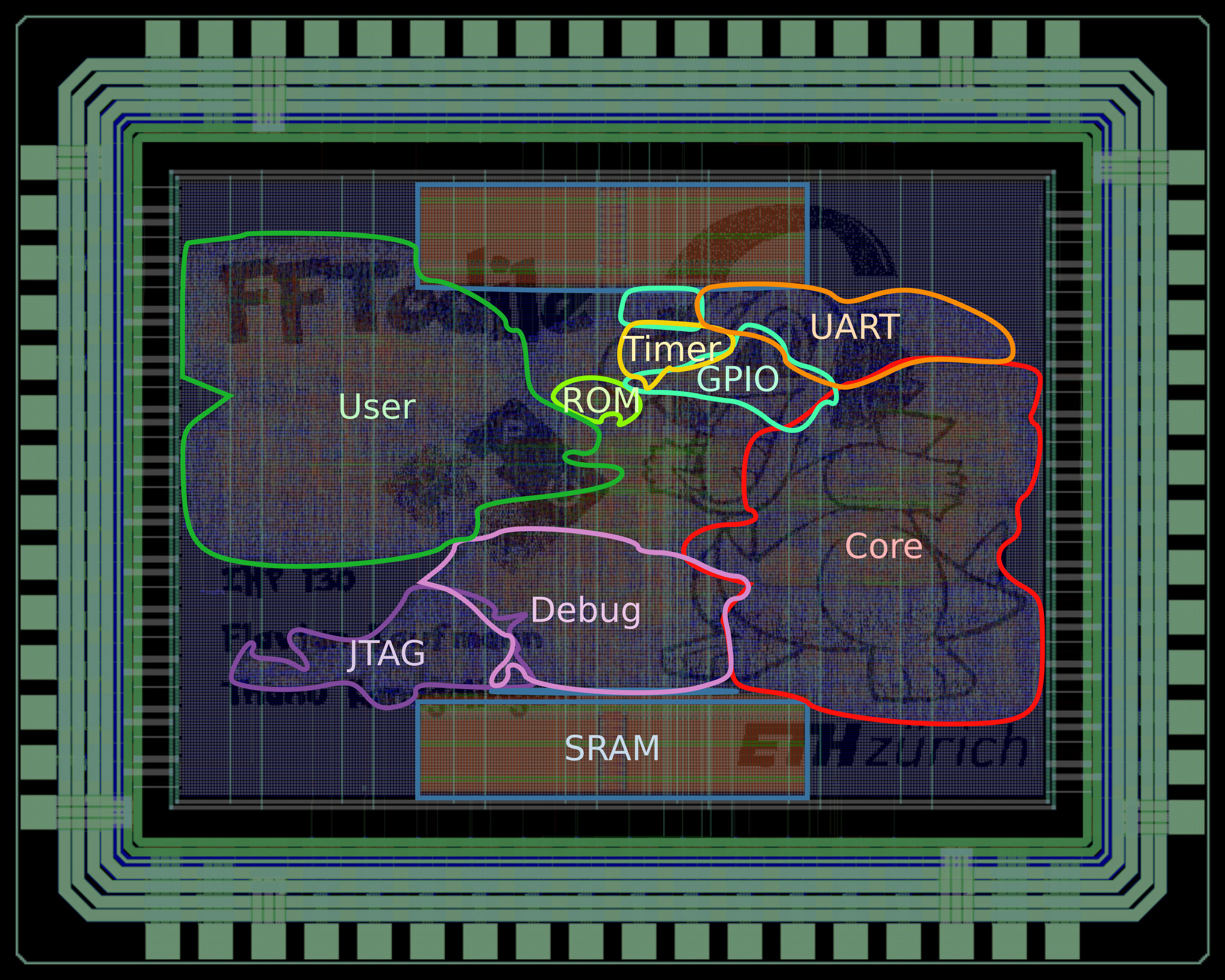

Current layout snapshots:

Module Placement	Routed Design	Rendered Chip

These images are refreshed by the ArtistIC Render GitHub Pages workflow. The checked-in images under doc/ are static reference snapshots. The interactive map viewer is published at https://flavian112.github.io/fftodile/.

Memory Map

Default platform address ranges:

Start	End	Region
0x0000_0000	0x0004_0000	Debug module
0x0200_0000	0x0200_4000	Boot ROM
0x0204_0000	0x0208_0000	CLINT
0x0300_0000	0x0300_1000	SoC control/info registers
0x0300_2000	0x0300_3000	UART
0x0300_5000	0x0300_6000	GPIO
0x0300_A000	0x0300_B000	OBI timer
0x0300_B000	0x0300_C000	Optional iDMA registers
0x1000_0000	+SRAM_SIZE	SRAM banks
0x2000_0000	0x2000_1000	User ROM
0x2000_1000	...	FFT accelerator

The user ROM returns:

FFTodile REV 1.0 - Flavian Kaufmann, Thanu Kanagalingam

FFT Accelerator

Samples are packed into one 32-bit word:

sample[31:16] = signed 16-bit real component
sample[15:0]  = signed 16-bit imaginary component

Top-level compile-time parameters:

Parameter	Default	Description
FftLength	16	Number of complex samples per run
FftDataWidth	16	Signed bits per real/imaginary component
FftScalingMode	1	0: no butterfly scaling, 1: scale each stage
FftInverse	0	0: forward FFT, 1: inverse FFT
FftUseRounding	0	0: truncate scaled results, 1: round-half-up before shift
FftUseSaturation	0	0: wrap on overflow, 1: saturate to signed min/max

Supported RTL lengths are 2, 4, 8, and 16 points. The default 16-point build and a representative 8-point build are covered by simulation. The software reference model currently supports the verified 8-point and 16-point cases.

Register map relative to FFT_BASE_ADDR = 0x2000_1000:

Offset	Register	Description
0x00	CTRL	Bit 0 starts one run
0x04	STATUS	Bit 0 busy, bit 1 sticky done; write 1 to bit 1 to clear
0x08	SRC_ADDR	Source buffer address
0x0C	DST_ADDR	Destination buffer address
0x10	IRQ_CTRL	Bit 0 enables completion interrupt while done is set
0x14	CONFIG	Synthesized FFT length, width, scaling mode, and build flags
0x18	CYCLES	Accelerator cycle count for the previous run

CONFIG fields:

Bits	Field	Description
[7:0]	LENGTH	Synthesized FFT length
[11:8]	LOG2_LENGTH	log2(LENGTH)
[23:16]	DATA_WIDTH	Signed component width
[24]	INVERSE	Inverse FFT build flag
[26:25]	SCALE_MODE	0: no scaling, 1: scale each stage
[27]	BIT_REVERSE	Input is loaded in bit-reversed order

Software Interface

The public bare-metal API lives in sw/lib/inc/fft.h.

Minimal usage:

#include "fft.h"

static fft_sample_t input[FFT_N];
static fft_sample_t output[FFT_N];

input[0] = fft_pack(0x1000, 0);
for (int i = 1; i < FFT_N; i++) {
    input[i] = 0;
}

fft_run(input, output);

The API exposes register access helpers, configuration decoding, busy/done status, optional interrupt enable, cycle count reads, and blocking out-of-place/in-place runs. Tests and benchmarks use sw/lib/inc/fft_ref.h as the fixed-point reference model.

For non-default FFT simulations, keep hardware and software compile-time flags aligned. Examples:

# Disable per-stage scaling.
make clean-sim
make test-fft VERILATOR_FLAGS=-GFftScalingMode=0

# Inverse FFT with rounding and saturation.
make clean-sim
make test-fft \
  VERILATOR_FLAGS='-GFftInverse=1 -GFftUseRounding=1 -GFftUseSaturation=1' \
  RISCV_EXTRA_CCFLAGS='-DFFT_REF_USE_INVERSE=1 -DFFT_REF_USE_ROUNDING=1 -DFFT_REF_USE_SATURATION=1'

# 8-point FFT build.
make clean-sim
make test-fft \
  VERILATOR_FLAGS='-GFftLength=8' \
  RISCV_EXTRA_CCFLAGS='-DFFT_SYNTH_LENGTH=8 -DFFT_SYNTH_LOG2_LENGTH=3'

Build and Verification

Top-level Makefile variables:

Variable	Default	Use
PROJ_NAME	croc	Backend/finishing project name
TOP_DESIGN	croc_chip	Physical-flow top design
BIN	sw/bin/helloworld.hex	Hex image used by make sim
VERILATOR_FLAGS	empty	Extra Verilator/top-parameter flags

Main targets:

Target	Purpose
make init	Initialize submodules
make sw	Build all software images
make lint	Check Python and C/C++ formatting
make lint-fix	Apply formatting fixes
make preflight	Run local CI-like smoke/regression checks
make sim BIN=...	Build software, build Verilator, and run one hex image
make test-fft	Run FFT correctness simulation
make bench-fft	Run FFT benchmark simulation
make test-sram	Run SRAM address/data simulation
make flist	Regenerate generated file lists
make clean	Remove generated software, simulation, and flow outputs

The benchmark reports:

• software-visible cycle count for software FFT
• software-visible cycle count for hardware FFT
• accelerator-reported cycle count from CYCLES
• estimated host/transfer overhead
• out-of-place and in-place hardware runs
• BENCH_CSV,... lines consumed by CI

Print-config introspection is validated by .github/scripts/check_print_config.py. It checks the SoC info word, SRAM sizing, generated peripheral base addresses, optional iDMA presence, user ROM contents, and basic JTAG/core execution sequence.

ASIC Flow

The ASIC flow is wrapped by the top-level Makefile:

Bender/file lists -> Yosys -> OpenROAD -> KLayout

Stage targets:

Target	Stage
make synth	Yosys synthesis
make floorplan	OpenROAD floorplan
make placement	OpenROAD placement
make cts	OpenROAD clock-tree synthesis
make routing	OpenROAD routing
make finishing	OpenROAD finishing
make backend	All OpenROAD stages
make gds	KLayout DEF-to-GDS
make seal	Merge seal ring
make fill	Add fill
make flow	synth backend gds seal

Clean targets:

Target	Removed outputs
make clean-sw	sw/bin, sw/build
make clean-sim	Verilator build/log/waveform outputs
make clean-flow	Yosys, OpenROAD, and KLayout outputs
make clean	All of the above

Generated logs, reports, waveforms, OpenROAD outputs, and GDS outputs are not intended to be committed.

ArtistIC Flow

The artistic/ directory contains the rendering flow for GitHub Pages and top-metal artwork previews. This flow is separate from functional RTL verification.

Typical local sequence:

On the host, with Inkscape and ImageMagick available:

cd artistic
./run_artistic.sh --prepare-logo

Inside the OSEDA container:

cd /fosic/designs/croc/artistic
./run_artistic.sh --create-logo croc.sealed.gds.gz
./run_artistic.sh --render-raw
./run_artistic.sh --render-map-raw

Back on the host:

cd artistic
./run_artistic.sh --render-pdf
./run_artistic.sh --outline
./run_artistic.sh --render-map-db
cd mapify
python3 -m http.server 8000

Open http://localhost:8000 to inspect the generated map viewer.

Configuration

Main configuration sources:

Source	Owns
rtl/croc_pkg.sv	SoC configuration, core selection, SRAM sizing, main address map
rtl/user_pkg.sv	User-domain address map
rtl/test/tb_croc_pkg.sv	Verilator testbench clock/UART defaults
rtl/croc_chip.sv	Default FFT top-level parameters exposed to software
scripts/generate_sw_config.py	Generation of sw/config.h from RTL sources

sw/config.h is generated. Do not edit it by hand. It is refreshed by normal software builds such as make sw, make test-fft, and make preflight.

Current default SRAM configuration:

• NumSramBanks = 2
• SramBankNumWords = 1024

The technology-specific SRAM mapping is implemented through ihp13/tc_sram_impl.sv.

The PDK is a git submodule under ihp13/pdk and is patched by env.sh during tool setup. If git reports that submodule as dirty after the patch is applied, use:

git config submodule.ihp13/pdk.ignore dirty

GitHub Actions

All GitHub-owned JavaScript actions are pinned to Node 24-capable major versions.

Workflow	Triggers	Purpose
Preflight	PRs, pushes to any branch, manual	Static checks first, then local preflight smoke simulation
Short Flow	PRs, pushes to main, manual	Simulation regression, FFT variant matrix with benchmark metrics, and synthesis metrics
Full Flow	Successful Short Flow on main, releases, manual	Yosys/OpenROAD/KLayout full backend flow through sealed GDS
ArtistIC Render	Successful Full Flow on main, pushes to artistic/**, manual	Logo/artistic rendering, map generation, GitHub Pages deployment

The intended pipeline order is:

Preflight -> Short Flow -> Full Flow -> ArtistIC Render

Preflight and Short Flow both run on pull requests. Full Flow is intentionally kept out of the normal PR path because it is much heavier; it runs automatically after Short Flow succeeds on main, or when triggered manually/release-driven.

Important CI scripts:

Script	Purpose
.github/scripts/run_preflight.sh	Local/CI preflight smoke and default FFT regression
.github/scripts/run_sim_flow.sh	Default smoke simulation plus iDMA-enabled unit tests
.github/scripts/run_fft_variant.sh	One FFT build variant test+benchmark+metrics run
.github/scripts/run_benchmark.sh	Standalone FFT benchmark artifact generation
.github/scripts/run_synth_flow.sh	Synthesis run and metrics extraction
.github/scripts/run_full_flow.sh	Full physical flow
.github/scripts/check_print_config.py	Print-config log validator
.github/scripts/check_metrics.py	Variant and synthesis metric threshold checks

CI regression thresholds live in .github/metrics/baseline.json. Update them deliberately when a measured regression or improvement is expected. Generated per-run metrics should remain CI artifacts, not committed files.

Development Guidelines

For RTL source membership changes:

1. Update Bender.yml.
2. Run make flist.
3. Run at least make test-fft.
4. For synthesis-impacting changes, run make synth.

For SoC or address-map changes:

1. Edit the canonical RTL source.
2. Refresh generated software constants with make sw.
3. Run make sim BIN=sw/bin/test/print_config.hex.
4. Run .github/scripts/check_sim.sh verilator/croc.log if you did not run a wrapper flow that already calls it.
5. Update documentation if the change is user-visible.

For FFT operating-mode changes:

1. Keep Verilator top-parameter overrides and software reference-model macros aligned.
2. If a default FFT parameter changes, update the default in rtl/croc_chip.sv so generated software constants remain correct.
3. Add or update a representative entry in the Short Flow FFT variant matrix.
4. Run the default test plus the affected variant locally.

Recommended validation:

Change type	Minimum local check
Formatting only	make lint
FFT datapath or software model	make test-fft
SoC/config/introspection	make sim BIN=sw/bin/test/print_config.hex
Synthesis-impacting RTL	make synth
PR-ready branch	make preflight

Upstream and License

This repository is based on Croc, an educational SoC developed as part of the PULP project by ETH Zurich and the University of Bologna. FFTodile keeps that infrastructure and replaces the generic user-design area with the FFT accelerator project.

Unless specified otherwise in individual file headers, hardware sources and tool scripts are licensed under the Solderpad Hardware License 0.51. Software sources are licensed under Apache 2.0. See LICENSE.md and file headers for details.
