openjump-drillgis-plugin

openjump-drillgis-pluigin is an experimental extension for OpenJump GIS that allows execution of spatial queries against Apache Drill with DrillGis contrib module.

Installation

Clone/download the sourcecode and build with maven

$ mvn clean package

You should have target/DrillGISPlugin-1.3.0.jar now.

Download OpenJump portable snapshot build:

http://sourceforge.net/projects/jump-pilot/files/OpenJUMP_snapshots/OpenJUMP-Portable-20151115-r4552-CORE.zip/download

then copy target/DrillGISPlugin-1.3.0.jar to OpenJump ext directory. Also ensure to copy drill-jdbc-all-1.2.0.jar in the same place.

Start Apache Zookeeper:

zookeeper/bin/zkServer.sh start

Start Apache Drill (with gis contrib module available as drill-gis plugin or included in Apache Drill master branch):

apache-drill-1.3.0/bin/drillbit.sh start

Start OpenJump

OpenJump/bin/oj_linux.sh

Usage

Select 'File' -> 'Run Datastore Query'

Click 'Connection Manager' icon and click 'Add'

Choose DrillGis as driver and specify drill server name i.e. localhost

After connecting to drill you are ready to specify sample query:

select columns[2] as city, ST_Point(columns[4], columns[3])
    from cp.`sample-data/CA-cities.csv`
    where
        ST_Within(
            ST_Point(columns[4], columns[3]),
            ST_GeomFromText(
                'POLYGON((-121.95 37.28, -121.94 37.35, -121.84 37.35, -121.84 37.28, -121.95 37.28))'
                )
            )

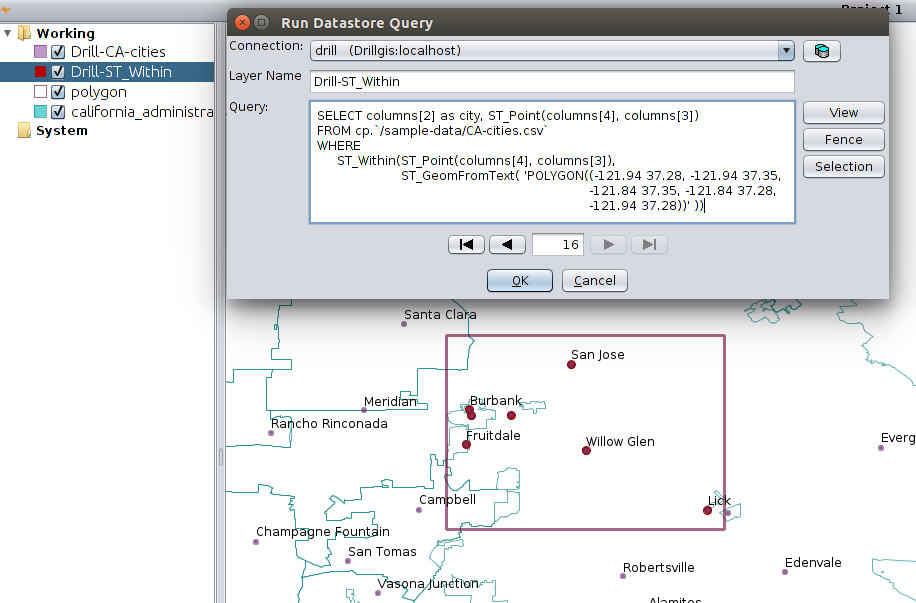

which shows points from our dataset limited to region near San Jose as shown here:

• Sample dataset filtered based on polygon

Author

Karol Potocki

License

---

GPL 2.0 License
