jnprsr ('ʤunəpɑrsər) is a Parser for Juniper configuration files.
It is based around a Lexer and Parser built using ANTLR4 (https://www.antlr.org/). The formal grammar used in our project was initially created by the batfish (https://github.com/batfish/batfish) project.
Our tool allows to generate an Abstract Syntax Tree (AST) from a given Juniper configuration file. This AST can then be processed further. Currently, we provide the following functions:
- Pretty-Printing
- Configuration Merge
- Sub-Tree Selection
The AST generated by our implementation uses a data-type provided by the anytree (https://github.com/c0fec0de/anytree) library. You can easily process the AST generated by our implementation and use it in our own tools.

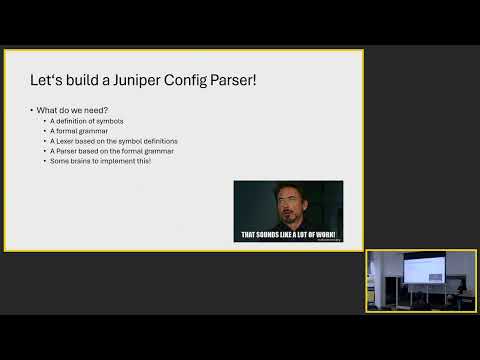

We have presented jnprsr at the DENOG Meetup 2025-01 in Frankfurt:
Please note: This is currently still a beta release. This product comes with absolutely no warranty. It is neither supported nor endorsed in any way by Juniper Networks Inc. We assume no liability for any undesired or incorrect behavior you might experience with this software. If you break your network using jnprsr, it is your responsibility and you should be ashamed of yourself for not testing your software properly.
You can install jnprsr using pip:
pip install jnprsr
You can also install directly from Git:
pip install git+https://github.com/markusju/jnprsr.git
It allows you to transform a configuration file looking like this
interfaces { et-0/0/0 {description "More Bandwidth!"; unit 0 {family inet{address 192.0.2.1/24;}}}}
into this
interfaces {
et-0/0/0 {
description "More Bandwidth!";
unit 0 {
family inet {
address 192.0.2.1/24;
}
}
}
}
Suppose you have this snippet
interfaces {
et-0/0/0 {
description "Skynet NNI";
}
}
and this target configuration
interfaces {
et-0/0/0 {
unit 0 {
family inet {
address 192.0.2.1/24;
}
}
}
}
using jnprsr you can perform a > load merge operation on the target configuration with the snippet to generate this:
interfaces {
et-0/0/0 {
description "Skynet NNI";
unit 0 {
family inet {
address 192.0.2.1/24;
}
}
}
}
Let's say you have this configuration file:
protocols {
bgp {
group SKYNET-PEER {
type external;
peer-as 1337;
neighbor 1.2.3.4;
}
group EVILCORP-PEER {
type external;
peer-as 1338;
neighbor 1.2.3.5;
}
group UMBRELLACORP-PEER {
type external;
peer-as 1339;
neighbor 1.2.3.6;
}
}
}
and you want to access the sub-tree of the SKYNET-PEER BGP peer-group.
Using jnprsr you can easily perform the equivalent of
> show configuration protocols bgp group SKYNET-PEER:
protocols {
bgp {
group SKYNET-PEER {
type external;
peer-as 1337;
neighbor 1.2.3.4;
}
}
}
Since jnprsr creates an anytree object, you can easily work with the parsed configuration data. Some things you could do include, but are not limited to:
- Validation and/or Verification: Does a certain configuration element or sub-tree exist?
- Comparison: Comparing two given configurations, what nodes are different?
- Editing: Create, Remove, Change a given configuration and generate textual output from the changed tree again.
jnprsr currently comes with 3 commands that you can use on your shell:
- jnprsr-pretty
- jnprsr-subtree
- jnprsr-merge
is a pretty printer. You can supply a Juniper Configuration file and it will pretty print the received configuration. Meaning that the configuration is returned with the proper indentation and spacing.
You can use the script interactively. Simply call it and then paste the configuration. You can end your input on an empty new line with CTRL+D or by typing !END.
$ jnprsr-pretty
[Type CTRL+D or '!END' at a new line to end input]
interfaces { et-0/0/0 {description "More Bandwidth!"; unit 0 {family inet{address 192.0.2.1/24;}}}}
interfaces {
et-0/0/0 {
description "More Bandwidth!";
unit 0 {
family inet {
address 192.0.2.1/24;
}
}
}
}
Alternatively you can also simply pipe your messed up config at the script to make it pretty. In this case you do not need to end the input.
Note that we are using the -s flag in this example. This silences any additional output, so that you can process the output more easily.
$ cat what-a-mess.txt | jnprsr-pretty -s
interfaces {
et-0/0/0 {
description "More Bandwidth!";
unit 0 {
family inet {
address 192.0.2.1/24;
}
}
}
}
is an interactive CLI allowing you to navigate a configuration (almost) as if you are working on a real device.
Once you have loaded the configuration from a file, you can use the auto-completion function using the <TAB> key. You can navigate to a suggestion using the arrow keys.
This script can be helpful when navigating large configuration files.
allow you to merge a given configuration onto another configuration. It behaves like a load merge operation on an existing configuration.
$ cat test1.txt
system {
host-name "test";
}
$ cat test2.txt
system {
name-server {
10.4.3.222;
}
}
$ jnprsr-merge test1.txt test2.txt
system {
host-name "test";
name-server {
10.4.3.222;
}
}
You can easily use jnprsr in your own scripts. For this you will almost always start with the get_ast() function. It will parse a given string and return an object of the type JuniperASTNode. This datatype inherits properties from the anytree NodeMixin type. So you can work with this object the same way you would work with an anytree tree.
For ease of use we have created some helper functions that allow
import jnprsr
config = "system { host-name "test"; }"
ast = jnprsr.get_ast(config)
For ease of use we have created some Juniper Configuration specific helper functions:
render_config_from_ast(ast: JuniperASTNode) -> str- This will return a textual representation of the AST, meaning it will converted back into configuration text.
render_ascii_tree_from_ast(ast: JuniperASTNode) -> str- This will return an ascii tree representing the AST, because why not? :)
render_dict_from_ast(ast: JuniperASTNode) -> dict- This will return a dictionary from a given configuration file.
merge(ast1, ast2) -> JuniperASTNode- This will merge ast2 onto ast1
get_sub_tree(ast: JuniperASTNode, path: str) -> JuniperASTNode- This will return the subtree at specified path, for example 'interfaces et-0/0/0'
