The purpose of this project is to implement a reinforcement learning policy to model situational assessments, actions, and rewards programmatically. Multiple two-dimensional maze-like environments with goals/treasures (yellow squares), walls (black squares), and enemies (red squares) were created to test the agent (green square). Q-learning was implemented to teach the agent how to quickly obtain treasures and avoid enemies. The amount of time taken to collect all treasures and the number of enemies fought served as metrics to gauge the performance of the agent. GIFs were created for each environment to easily illustrate the agent's behavior and the efficacy of the training algorithm.
First, the two-dimensional maze-like environments and visualization tools were created using NumPy arrays and a library called array2gif. As soon as GIFs could be created to show the movement of an agent on a two-dimensional plane, simple mazes were created with no obstacles or enemies. The initial mazes contained only the agent and a single treasure. Then, Q-learning was used to produce a path that would lead the agent directly to the treasure. This was accomplished by giving the agent a small negative reward, or penalty, for every step taken. This was included to ensure that direct paths were taken to treasures. To indicate the yellow squares were desirable, a large positive reward was given to the agent whenever it moved to a cell containing a treasure.
Once this was accomplished, larger environments were created with walls and multiple treasures. Walls served as impassable boundaries preventing the agent from moving directly to a treasure. After the agent could avoid these obstacles and collect multiple treasures, enemies were introduced. Unlike walls, the agent could move into, or attack, these enemies. However, attacking enemies resulted in a moderate negative reward, or penalty. Doing this incentivized the agent to generally avoid enemies and attack if necessary. One can think of the agent as a pacifist. A notable test performed involved a long winding path to a treasure with no enemies and a short path directly to a treasure with one enemy. The penalties were set such that attacking this enemy and traveling directly to the treasure resulted in a lower overall cost than traversing the enemy-free path. This example illustrates the agent's dynamic learned decision-making capabilities.
This project was written in Python 3.7.2 and requires modules that can be installed by navigating to the project directory and running this command:
pip3 install -r requirements.txt
Once the dependencies are installed, learning can commence. To train an agent, an environment size must be specified. The available sizes are "small", "medium", and "large". Optionally, the presence of enemies in each environment can be toggled by adding "enemies" to the command. Each of the environments can used by issuing a command of this format:
python3 main.py <size> [enemies]
Examples:
To run the small environment with no enemies:
python3 main.py small
To run the medium environment with enemies:
python3 main.py medium enemies
Note: It takes a very long time to train on the large environment without enemies. This has already been done and the results are shown below
For each environment, a GIF and plot were created. The GIF graphically shows the agents path through the environment. The plot shows the number of time steps taken to collect all treasures at each episode during training. There is a general trend in each plot. They all start rather high (it takes a long time to collect all treasures initially because the agent hasn't learned how), and as training continues, the amount of time steps taken to collect all treasures decreases and eventually converges as the model learns the best path. Plots were not included for the small environments since they were so simple. Essentially no improvement was shown in the small plots.
Note: In these examples the green square represents the agent, yellow squares represent treasure, black squares represent walls, and red squares represent enemies

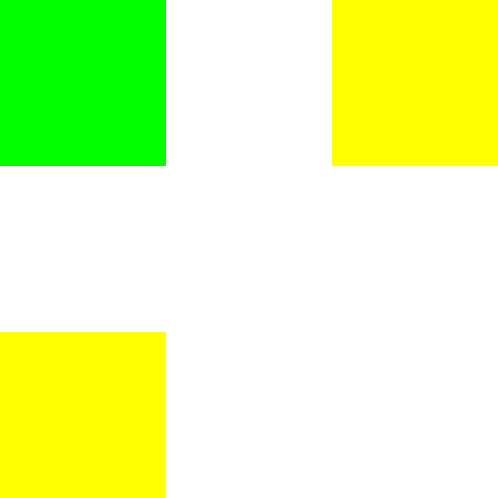

Small environment with no enemies:
With no enemies or obstacles, the agent maximizes its reward by heading directly for each treasure.
Small environment with enemies:
To avoid the moderate penalty of fighting, the agent circumvents the enemies to collect the treasures. In this basic example, the agent essentially treats the enemies as walls. The penalty for attacking the enemies is much higher than the penalty for the few steps it takes to avoid them.
Medium environment with no enemies:
This is the first environment that introduces walls. The agent is totally incapable of moving through a wall, so it's forced to move around each of them to collect all three treasures.

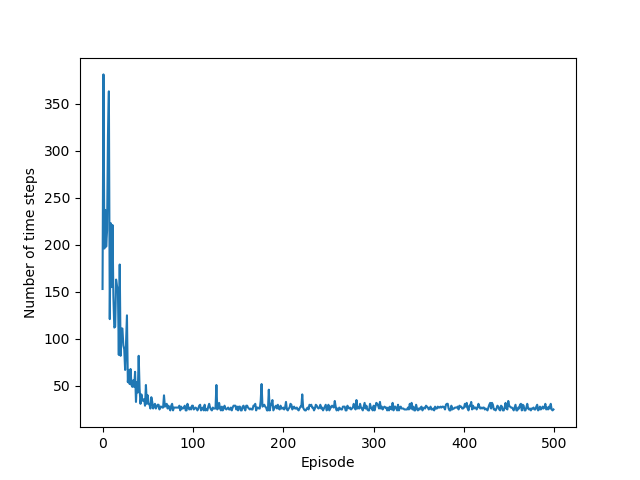

This plot clearly shows the effect Q-learning has on the agent's behavior. Initially the number of time steps (or moves) required to collect all three treasures in this map was above 350! At this time, the agent was essentially making random movements and recording how each movement rewarded it. After only about 50 episodes, the agent seems to have found a rather good path for collecting each of the treasures in this environment. The slightly stochastic trend seen beyond episode 50 is due to the occasional exploration of the environment's solution space. Even though the agent already has some notion of what path gives success, it tries a new path in hopes that it will uncover an even better path. For more information, look into the exploration-exploitation tradeoff.

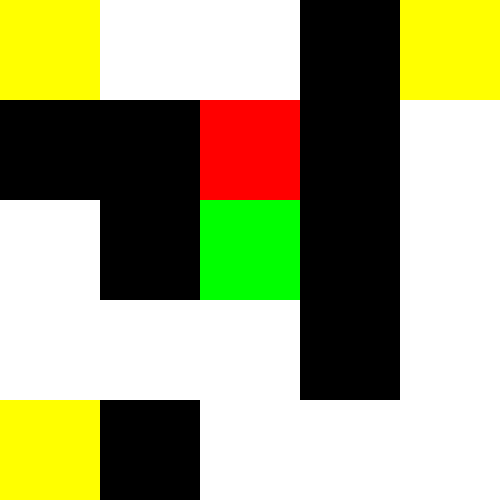

Medium environment with enemies:
This is the first example of the agent choosing to attack an enemy. There are two key differences to note between the agent's behavior in this environment and in the previous environment. First, the agent collects all of the treasures it can that don't require attacking the enemy. This illustrates Q-learning's notion of the short-term reward. The agent would rather do the hardest part last, in a sense. Second, it's worth noting that in this case, the agent only attacks the enemy because there are no alternate routes.

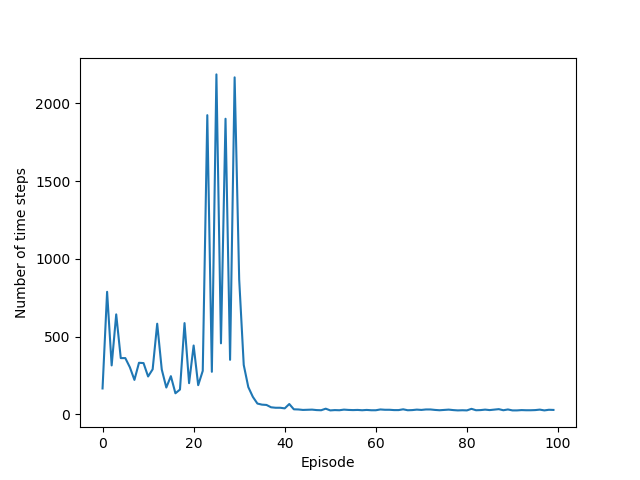

Admittedly, this plot has a rather unusual, but explainable shape. Like the previous plot, this one begins with a rather high number of time steps per episode, since again, the model doesn't know the best way to collect all treasures. However, around episode 25, the agent goes on a streak of exploration which at first doesn't yield spectacular results. But then, at around episode 35, the repeated exploration allows the agent to exploit a highly efficient, and arguably best, path.

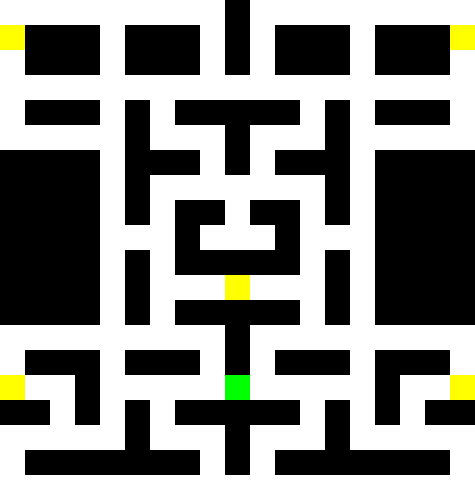

Large environment with no enemies:
Clearly, this environment takes inspiration from Pac Man. As opposed to the medium environment with no enemies, this environment contains multiple paths to each treasure, which greatly expands the state and solution spaces. This test was meant to stress-test the capabilities of the Q-learning implementation.

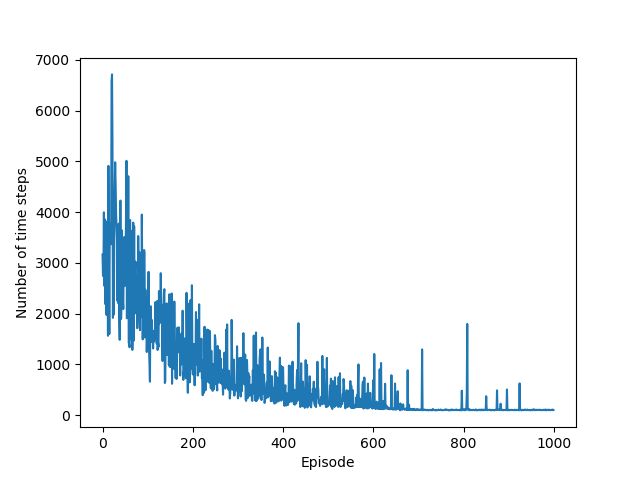

This plot shares the trend that each of the previous plots possess. Over time, the agent becomes more adept at collecting all treasures in a timely manner. Something worth noting is the much higher number of episodes required for the number of time steps to converge. This is a direct consequence of the incredibly large state and solution space.

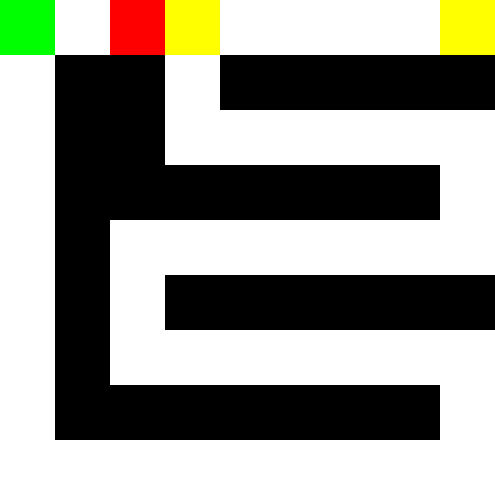

Large environment with enemies:
This final environment illustrates an interesting phenomenon. In the small environment with enemies, the agent treated the enemies as walls because it could. In that example there was another path around the enemies. In the medium environment with enemies, the agent only attacked the enemy because it was the only way to obtain the final treasure. In this example, there is clearly a path around the enemy that leads to all treasures. However, the agent attacks. This is because of the factors driving the agent. As previously stated, the agent is trying to quickly collect all of the treasures while simultaneously avoiding enemies. Because the path around the enemy is so long, the penalty for taking that path is much higher than the penalty for attacking the enemy. The agent chooses to attack the enemy in order to collect the treasures in a short amount of time.

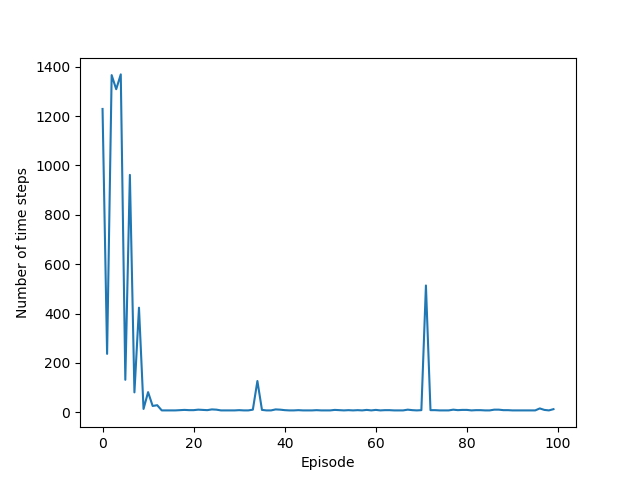

This plot converged faster than any other environment. This is simply because the resulting (best) path was so simple. After only about 10 episodes, the agent learned that attacking the enemy and heading straight for the treasures was faster than going around the enemy. It's worth noting the incredibly large number of time steps the agent initially took per episode to avoid attacking the enemy before finding out attacking the enemy resulted in a lower overall penalty.
Given more time to work on this project, I would have implemented multiple reinforcement learning algorithms and compared the results. Perhaps one algorithm would have found the best solution faster than all others for this application. A substantial piece of future work would be making the enemies move or chase the agent. Because I had Pac Man in mind when doing this project, an attempt at implementing this feature was made, but with the current policy/architecture, the state space grew exponentially. Training a model in an environment with moving enemies soon became infeasible due to the incredible number of possible states. Further improvements could also be made to the current Q-learning implementation to reduce total execution time, such as hyperparameter tuning or general architecture redesign. Also, the dimensionality of the environments can be expanded to three or more. As is, the algorithm should be able to support this with minimal changes. However, visualizing the behavior of the agent in these environments will likely become an issue.
