UI-UG (A Unified MLLM for UI Understanding and Generation) is a multimodal large model that simultaneously supports both UI understanding and UI generation. It supports various tasks including referring, grounding, captioning and generation.

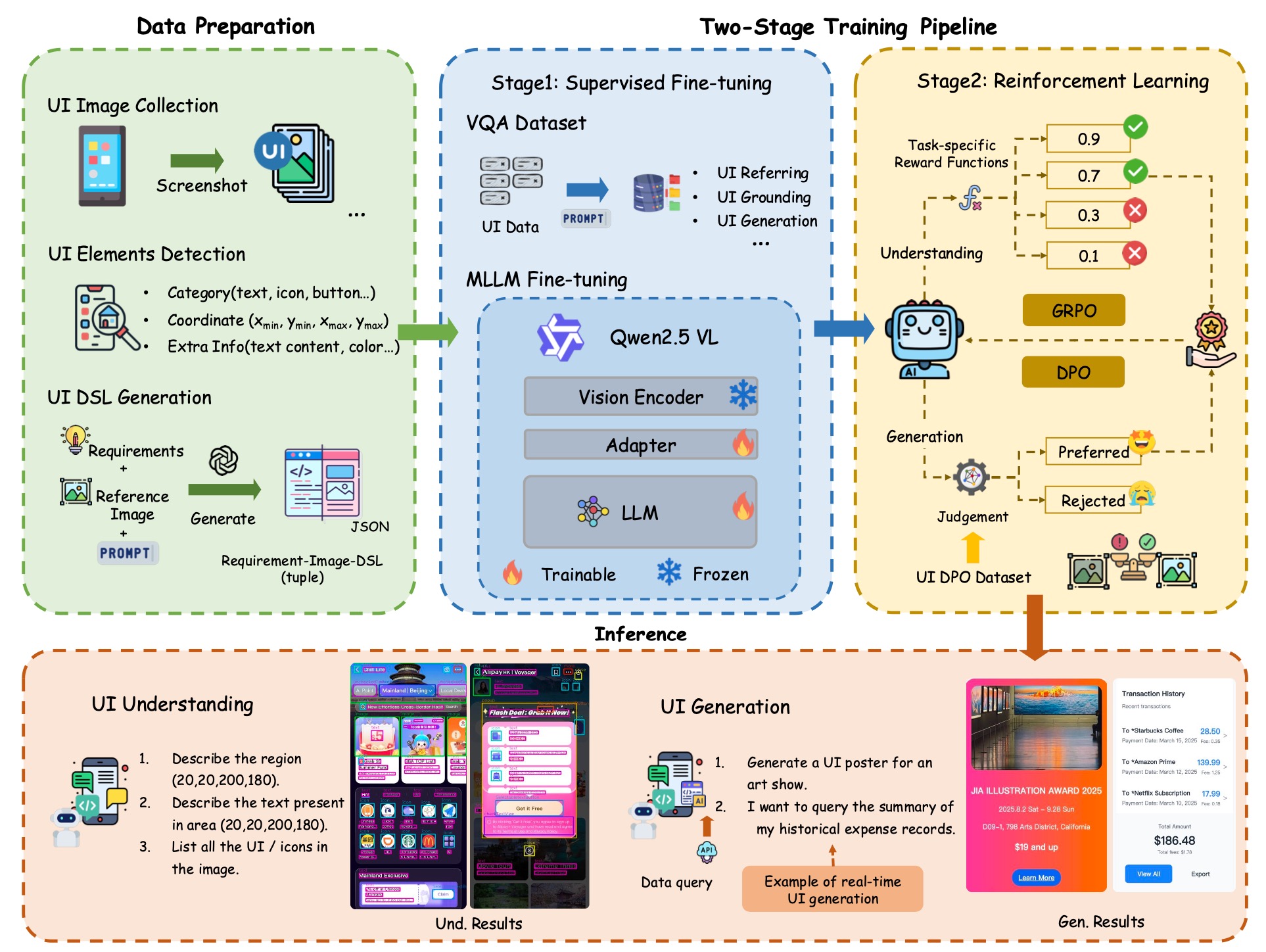

Figure 1: Overview of UI-UG. The workflow includes 1) Data preparation (UI image collection + element detection + DSL generation); 2) Two-stage training: SFT with VQA dataset, then RL optimization using GRPO and DPO for each task. The model supports UI understanding tasks (referring and grounding) and enables both offline and real-time UI generation.
- Element Description: Automatically generate element descriptions based on coordinate regions
- Semantic Understanding: Understand the function, style, and interaction meaning of UI elements
- Multi-dimensional Analysis: Include text, color, clickability, and other attributes
- Object Detection: Automatically identify and locate various UI elements in interfaces
- Classification: Support for 20+ categories including text, button, icon, image, etc.
- Coordinate Annotation: Precisely generate bounding box coordinates for elements
- DSL Generation: Generate structured DSL code from requirement descriptions
- Mock Data: Automatically generate accompanying mock data
- Multi-language Support: Support for generating UI code from Chinese and English descriptions
# Create virtual environment
python -m venv uiug-env
source uiug-env/bin/activate # Windows: uiug-env\Scripts\activate
# Install dependencies
pip install -r requirements.txt
# Install render dependencies (optional)
pip install playwright && playwright installfrom transformers import Qwen2_5_VLForConditionalGeneration, AutoProcessor
from qwen_vl_utils import smart_resize, process_vision_info
import torch
from PIL import Image
import re
# Configuration
IMAGE_FACTOR = 28
MIN_PIXELS = 64 * 28 * 28
MAX_PIXELS = 1280 * 28 * 28
MAX_TOKENS = 8192
# Load model
model_path = "neovateai/UI-UG-7B"
model = Qwen2_5_VLForConditionalGeneration.from_pretrained(
model_path, torch_dtype=torch.float16, device_map="auto"
)
processor = AutoProcessor.from_pretrained(
model_path,
min_pixels=MIN_PIXELS,
max_pixels=MAX_PIXELS
)
def llm_inference(messages):
"""Unified inference function"""
text = processor.apply_chat_template(
messages, tokenize=False, add_generation_prompt=True
)
image_inputs, video_inputs = process_vision_info(messages)
inputs = processor(
text=[text],
images=image_inputs,
videos=video_inputs,
padding=True,
return_tensors="pt",
)
inputs = inputs.to(model.device)
generated_ids = model.generate(
**inputs,
max_new_tokens=MAX_TOKENS,
do_sample=False
)
generated_ids_trimmed = [
out_ids[len(in_ids):]
for in_ids, out_ids in zip(inputs.input_ids, generated_ids)
]
output_text = processor.batch_decode(
generated_ids_trimmed,
skip_special_tokens=True,
clean_up_tokenization_spaces=False
)
return output_text[0]
# Load image
image_path = "figures/alipay_demo.png"
original_image = Image.open(image_path)
original_width, original_height = original_image.size
# Calculate resize dimensions
resized_height, resized_width = smart_resize(
original_height, original_width, IMAGE_FACTOR, MIN_PIXELS, MAX_PIXELS
)# Scale coordinates from original to resized dimensions
def scale_coordinates(original_coords, original_size, resized_size):
orig_x1, orig_y1, orig_x2, orig_y2 = original_coords
orig_w, orig_h = original_size
new_w, new_h = resized_size
scaled_x1 = int(orig_x1 * new_w / orig_w)
scaled_y1 = int(orig_y1 * new_h / orig_h)
scaled_x2 = int(orig_x2 * new_w / orig_w)
scaled_y2 = int(orig_y2 * new_h / orig_h)
return f"({scaled_x1}, {scaled_y1}),({scaled_x2}, {scaled_y2})"
# Example usage
original_coords_str = "(600, 623),(907, 634)"
# Parse original coordinates
coord_match = re.findall(r'\((\d+),\s*(\d+)\)', original_coords_str)
original_coords = [int(coord_match[0][0]), int(coord_match[0][1]), int(coord_match[1][0]), int(coord_match[1][1])]
scaled_coords_str = scale_coordinates(original_coords, (original_width, original_height), (resized_width, resized_height))
referring_messages = [
{
"role": "user",
"content": [
{"type": "image", "image": image_path},
{"type": "text", "text": f"Describe the region {scaled_coords_str}"}
]
}
]
referring_result = llm_inference(referring_messages)
print("Referring Result:", referring_result)grounding_messages = [
{
"role": "user",
"content": [
{"type": "image", "image": image_path},
{"type": "text", "text": "List all the ui items."}
]
}
]
grounding_result = llm_inference(grounding_messages)
# Extract coordinates from grounding result and rescale them
coord_pattern = r'\((\d+),\s*(\d+)\),\((\d+),\s*(\d+)\)'
matches = re.findall(coord_pattern, grounding_result)
for match in matches:
scaled_coords = [int(match[0]), int(match[1]), int(match[2]), int(match[3])]
original_coords_str = scale_coordinates(scaled_coords, (resized_width, resized_height), (original_width, original_height))
grounding_result = grounding_result.replace(f"({match[0]}, {match[1]}),({match[2]}, {match[3]})", original_coords_str)
print("Grounding Result:", grounding_result)generation_messages = [
{
"role": "user",
"content": [
# {"type": "image", "image": image_path}, # your optional referring image
{"type": "text", "text": "Generate a login form with email field, password field, and submit button"}
]
}
]
generation_result = llm_inference(generation_messages)
print("Generation Result:", generation_result)bash scripts/vllm_deploy.shvllm serve $MODEL_PATH \
--port 8000 \
--served-model-name ui_ug \
--dtype bfloat16 \
--tensor-parallel-size 1 \
--max-model-len 8192 \
--mm_processor_kwargs '{"max_pixels":1003520}' \
--trust-remote-code# Run individual tasks
python -m demo.run_demo --task referring # UI element referring
python -m demo.run_demo --task grounding # UI element grounding
python -m demo.run_demo --task generation # UI code generation
# Run all demo tasks
python -m demo.run_demo --all-tasks
# Custom image testing
python -m demo.run_demo --single \
--image-url YOUR_URL \
--prompt "Describe this UI."
# Enable streaming output
python -m demo.run_demo --task generation --stream# UI element referring evaluation
python -m eval.referring_evaluator
# UI element grounding evaluation
python -m eval.grounding_evaluator
# UI code generation evaluation
python -m eval.generation_evaluatorpython -m utils/render_utilsexport MODEL_PATH="/path/to/model" # Model path
export CUDA_DEVICES="0" # GPU device
export API_BASE="http://localhost:8000" # API address# Configuration in eval/config.py or demo/config.py
DEFAULT_BATCH_SIZE = 1
MIN_PIXELS = 4 * 28 * 28
MAX_PIXELS = 1280 * 28 * 28
SAMPLING_CONFIG = {
'temperature': 0.0,
'repetition_penalty': 1.2,
'max_tokens': 8192
}| Task Type | Description | Evaluation Metrics |
|---|---|---|
| Referring | UI element referring generation | JSON format accuracy, Classification accuracy, text similarity, color similarity |
| Grounding | UI element detection and localization | JSON format accuracy, mAP, AP50, AP75 |
| Generation | UI code generation | JSON format accuracy, LLM-based judgement (following Web2Code) |

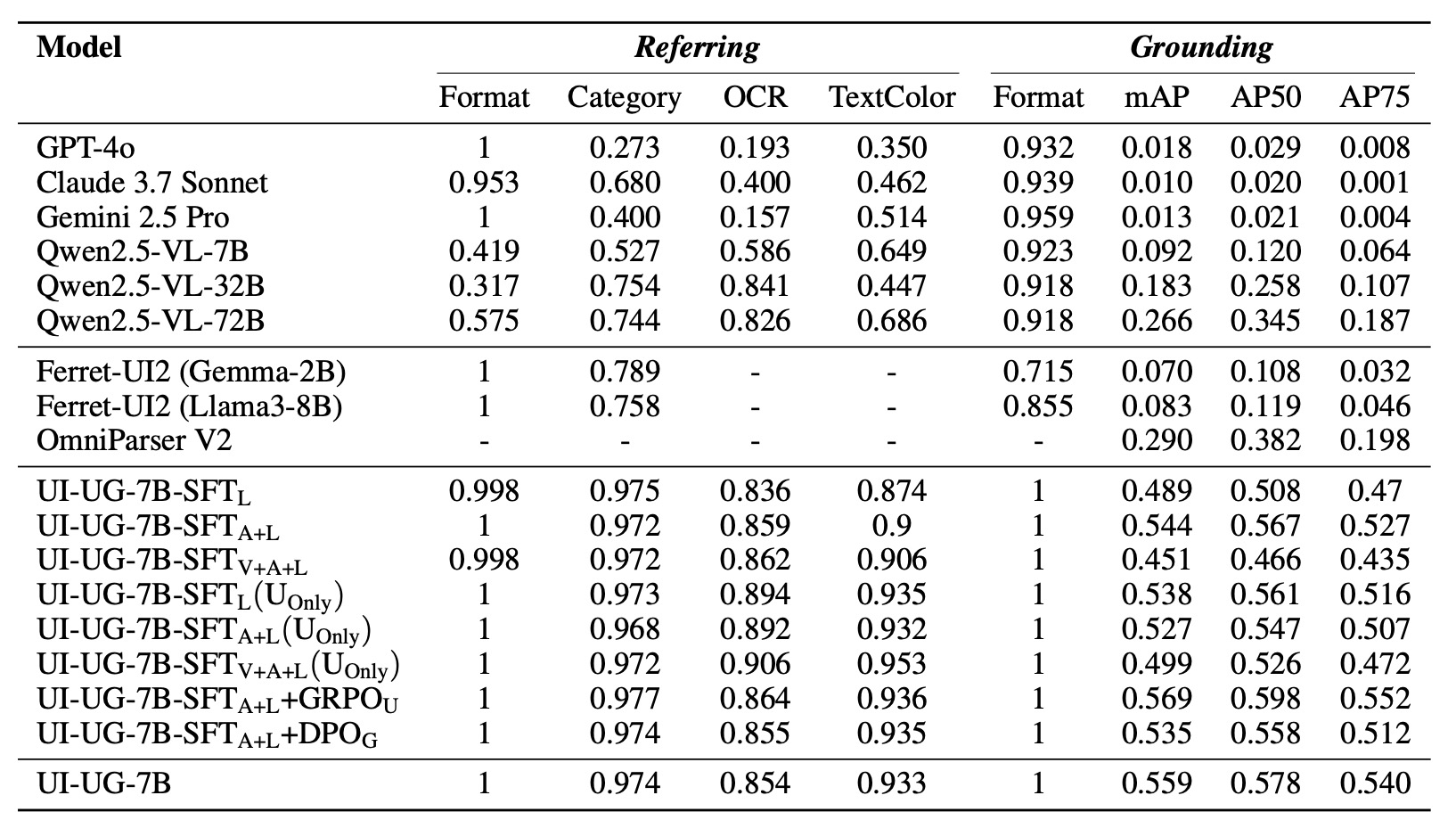

Table 1: Performance comparison of different models on referring and grounding tasks.

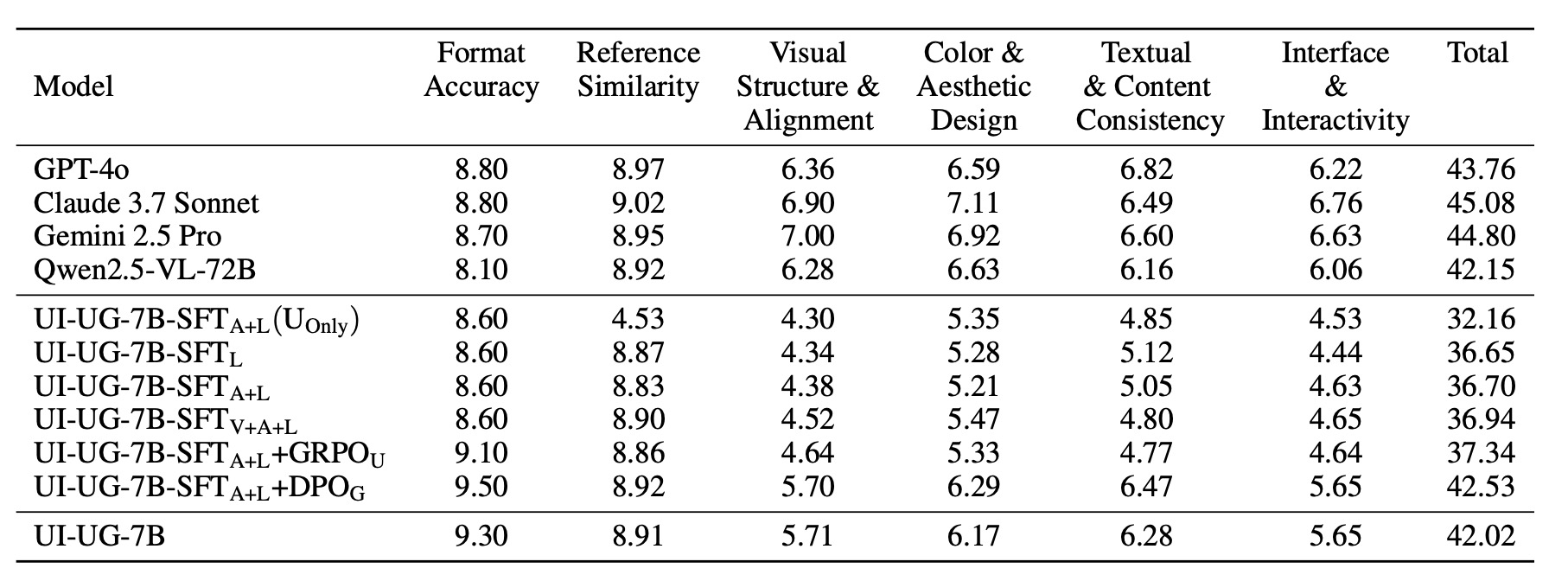

Table 2: Performance comparison of different models on generation tasks.
Figure 2: Visual comparison of different models for grounding task for complex UIs.
This project is licensed under the Apache 2.0 License - see the LICENSE file for details.
