Detect CWE-22 in Android Application

This scenario seeks to find the improper limitation of a pathname to a restricted directory (‘Path Traversal’).

CWE-22: Improper Limitation of a Pathname to a Restricted Directory ('Path Traversal')

We analyze the definition of CWE-22 and identify its characteristics.

See CWE-22 for more details.

Code of CWE-22 in ovaa.apk

We use the ovaa.apk sample to explain the vulnerability code of CWE-22.

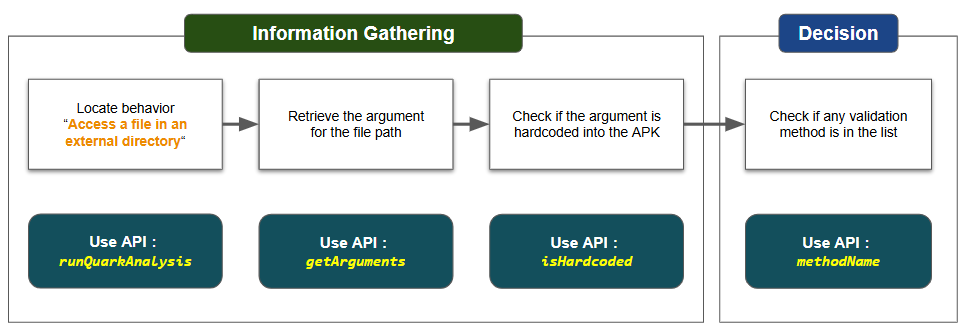

CWE-22 Detection Process Using Quark Script API

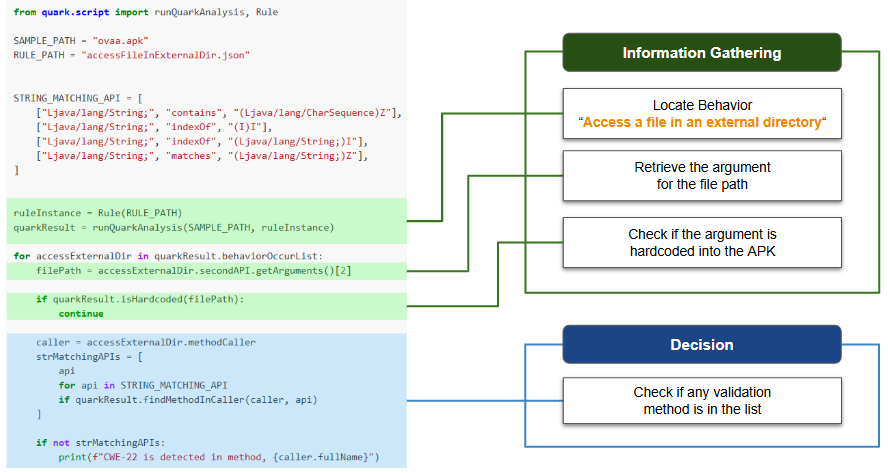

Let’s use the above APIs to show how the Quark script finds this vulnerability.

First, we design a detection rule accessFileInExternalDir.json to spot behavior accessing a file in an external directory.

Next, we use API methodInstance.getArguments() to get the argument for the file path and use quarkResultInstance.isHardcoded(argument) to check if the argument is hardcoded into the APK. If No, the argument is from external input.

Finally, we use Quark API quarkResultInstance.findMethodInCaller(callerMethod, targetMethod) to check if there are any APIs in the caller method for string matching. If NO, the APK does not neutralize special elements within the argument, which may cause CWE-22 vulnerability.

Quark Scipt: CWE-22.py

from quark.script import runQuarkAnalysis, Rule

SAMPLE_PATH = "ovaa.apk"
RULE_PATH = "accessFileInExternalDir.json"


STRING_MATCHING_API = [
    ["Ljava/lang/String;", "contains", "(Ljava/lang/CharSequence)Z"],
    ["Ljava/lang/String;", "indexOf", "(I)I"],
    ["Ljava/lang/String;", "indexOf", "(Ljava/lang/String;)I"],
    ["Ljava/lang/String;", "matches", "(Ljava/lang/String;)Z"],
]


ruleInstance = Rule(RULE_PATH)
quarkResult = runQuarkAnalysis(SAMPLE_PATH, ruleInstance)

for accessExternalDir in quarkResult.behaviorOccurList:

    filePath = accessExternalDir.secondAPI.getArguments()[2]

    if quarkResult.isHardcoded(filePath):
        continue

    caller = accessExternalDir.methodCaller
    strMatchingAPIs = [
            api for api in STRING_MATCHING_API if quarkResult.findMethodInCaller(
                caller, api)
    ]

    if not strMatchingAPIs:
        print(f"CWE-22 is detected in method, {caller.fullName}")

Quark Rule: accessFileInExternalDir.json

{
    "crime": "Access a file in an external directory",
    "permission": [],
    "api": [
        {
            "class": "Landroid/os/Environment;",
            "method": "getExternalStorageDirectory",
            "descriptor": "()Ljava/io/File;"
        },
        {
            "class": "Ljava/io/File;",
            "method": "<init>",
            "descriptor": "(Ljava/io/File;Ljava/lang/String;)V"
        }
    ],
    "score": 1,
    "label": []
}

Quark Script Result

$ python3 CWE-22.py
CWE-22 is detected in method, Loversecured/ovaa/providers/TheftOverwriteProvider; openFile (Landroid/net/Uri; Ljava/lang/String;)Landroid/os/ParcelFileDescriptor;
